Arlec Smart 2m/5m LED Strip Light

esp8266 au Comes with ESPHome light

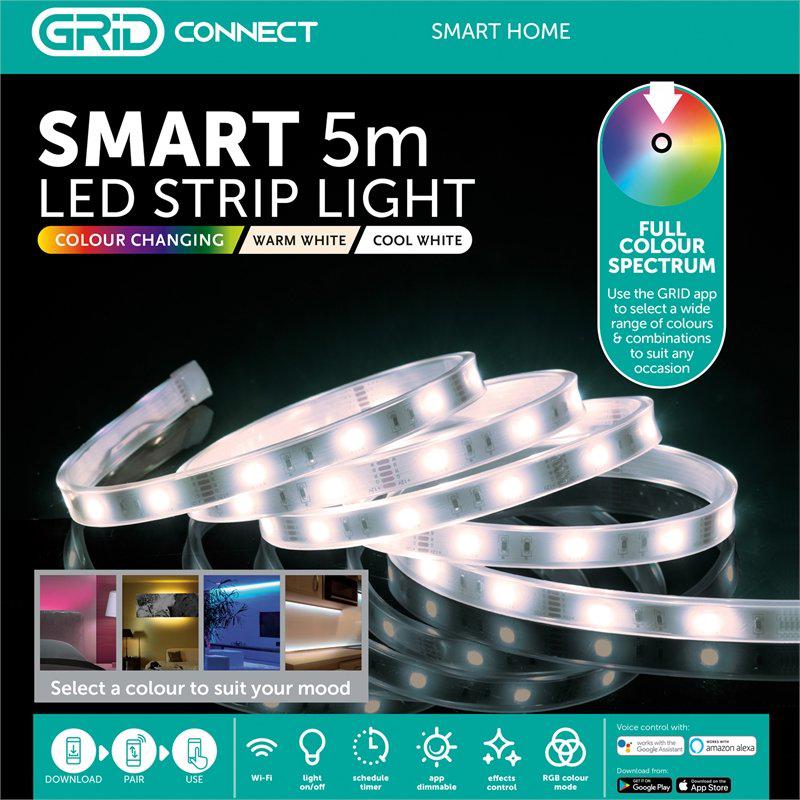

Arlec Smart 2m/5m LED Strip Light - Arlec-Smart-5m-LED-Strip-Light.jpg

General Notes

This configuration is for the Arlec Smart 2m LED Strip Light and Arlec Smart 5m LED Strip Light which comes as a colour changing LED strip with controller and transformer.

GPIO Pinout

PinFunction
GPIO4Red Channel
GPIO12Green Channel
GPIO14Blue Channel
GPIO5White Channel

Basic Configuration

esphome:
  name: led_strip
esp8266:
  board: esp01_1m
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
logger:
web_server:
api:
  encryption:
    key: !secret api_encryption_key
ota:
  password: "ota_password"
light:
  - platform: rgbw
    name: "LED Strip"
    red: output_red
    green: output_green
    blue: output_blue
    white: output_white
    restore_mode: RESTORE_DEFAULT_OFF
output:
  - platform: esp8266_pwm
    id: output_red
    pin: GPIO4
  - platform: esp8266_pwm
    id: output_green
    pin: GPIO12
  - platform: esp8266_pwm
    id: output_blue
    pin: GPIO14
  - platform: esp8266_pwm
    id: output_white
    pin: GPIO5
