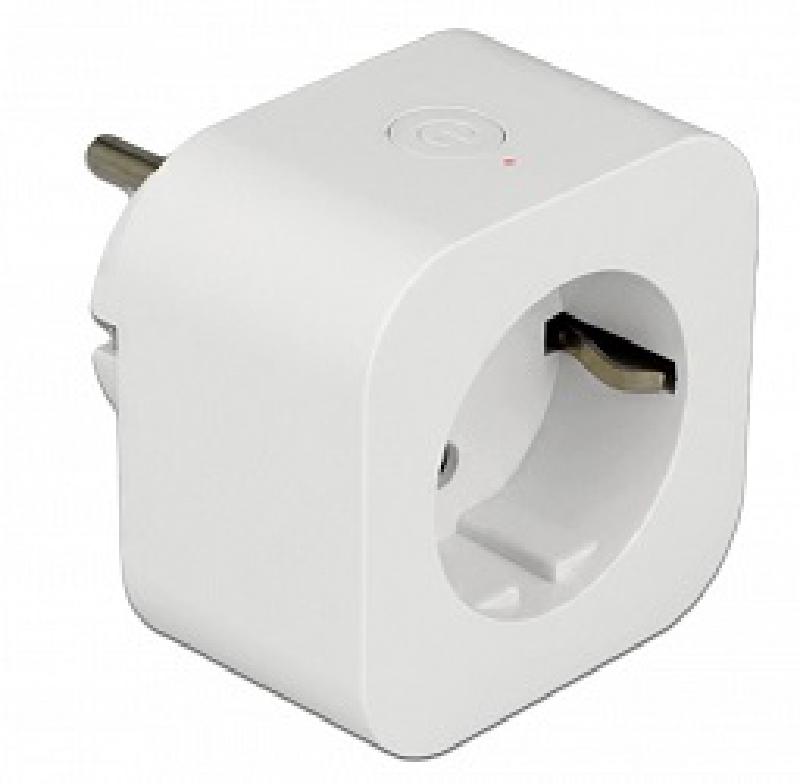

Delock 11826 Power Smart Plug

esp8266 eu Comes with ESPHome plug

General Notes

Model reference: 11826 Manufacturer: Delock The device comes pre-flashed with Tasmota. Flashing ESPHome is easily possible by uploading an ESPHome .bin file using the device’s web interface. In case of issues GZIP your .bin file!

GPIO Pinout

Pin	Function
GPIO0	Button (inverted)
GPIO12	Relay
GPIO13	LED

Basic Config

Basic configuration with switch.

substitutions:
  plug_name: delock01
esphome:
  name: ${plug_name}
  platform: ESP8266
  board: esp8285
# Enable Home Assistant API
api:
  encryption:
    key: !secret api_encryption_key
ota:
  password: !secret ota_password
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "${plug_name} Fallback Hotspot"
    password: "7xlV0YQ3J35a"
captive_portal:
# Enable logging
logger:
# Example configuration entry
web_server:
  port: 80
binary_sensor:
  - platform: gpio
    pin:
      number: GPIO0
      inverted: True
    name: "${plug_name} Button"
    on_press:
      - switch.toggle: relay
switch:
  - platform: gpio
    id: led
    pin: GPIO13
  - platform: gpio
    name: "${plug_name} Smart Plug"
    pin: GPIO12
    id: relay
    on_turn_on:
      - switch.turn_on: led
    on_turn_off:
      - switch.turn_off: led
