ESP-12F_Relay_X8

esp8266 global Comes with ESPHome relay

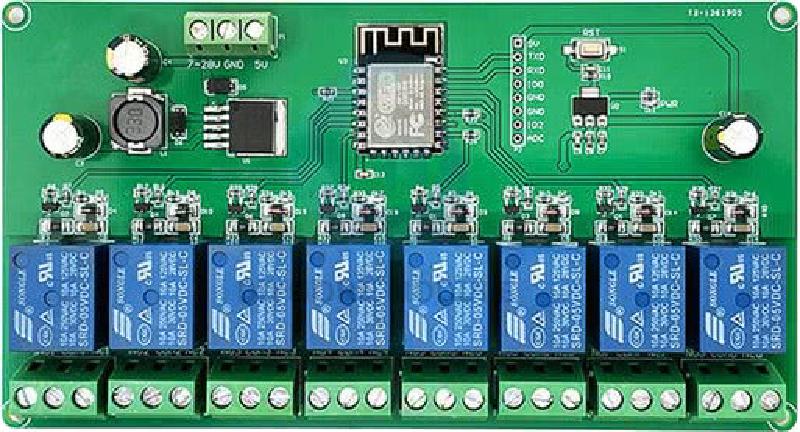

ESP-12F_Relay_X8 - image.jpg

Product description

This is a 8-relay board with an ESP-12F. Each relay has COM+NO+NC exposed. Product descriptions don’t seem to specify maximum load. The board can be powered either via 7-30VDC or via 5VDC (separate connectors). I bought it from: https://s.click.aliexpress.com/e/_DnEOi2r (affiliation link so i can make others like this, no guarantee it will continue to exist).

GPIO Pinout

This board has headers for every GPIO pin on its ESP-12F.

PinComment
5VDo not use 5V for programming
TXExposed on board 3.3V level!
RXExposed on board 3.3V level!
GPIO03.3V level! (pulled up, connect to GND for programming)
GND
GND
PinComment
—————————————————
3V3For programming, inject 3.3V power here
3V3For programming, inject 3.3V power here
5V
5V
GND
GND
GPIO5Relay 8
GPIO4Relay 7
GPIO0Relay 6
GPIO2Exposed on board
GPIO15Relay 5
GND
PinComment
———————————————
ADCExposed on board ( 0V-1V only )
ENPulled up
GPIO16Relay 1
GPIO14Relay 2
GPIO12Relay 3
GPIO13Relay 4

Basic Config

esphome:
  name: relayboard
  platform: ESP8266
  board: esp12e
# Status LED
light:
  - platform: status_led
    name: "RelayBoard LED"
    restore_mode: ALWAYS_ON
    pin:
      number: GPIO02
      inverted: True
# 8 relay outputs, exposed as switches in Home Assistant
switch:
  - platform: gpio
    pin: GPIO16
    name: Relay1
    id: relay1
  - platform: gpio
    pin: GPIO14
    name: Relay2
    id: relay2
  - platform: gpio
    pin: GPIO12
    name: Relay3
    id: relay3
  - platform: gpio
    pin: GPIO13
    name: Relay4
    id: relay4
  - platform: gpio
    pin: GPIO15
    name: Relay5
    id: relay5
  - platform: gpio
    pin: GPIO00
    name: Relay6
    id: relay6
  - platform: gpio
    pin: GPIO04
    name: Relay7
    id: relay7
  - platform: gpio
    pin: GPIO05
    name: Relay8
    id: relay8
