ESP32 Relay Board x8
Product description

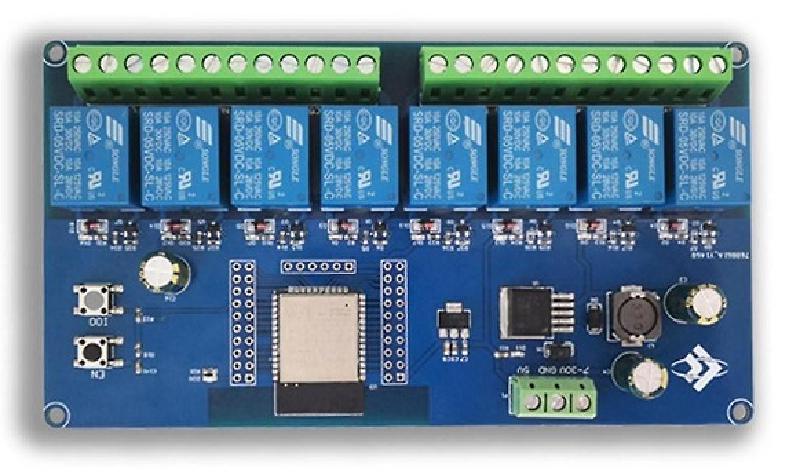

This is a 8-relay board with an ESP32-WROOM-E. Each relay has COM+NO+NC exposed. Product descriptions don’t seem to specify maximum load. Each relay supports 10Amp max load, acconding to the label. The board can be powered either via 7-30VDC or via 5VDC (separate connectors). It draws about 100mA with the relays off, and just over 500mA with all the relays on. I bought it from: https://www.aliexpress.us/item/3256802045374301.html
GPIO Pinout
This board has headers for every GPIO pin on its ESP32.
| Pin | Comment |
|---|---|
| 5V | Do not use 5V for programming |
| TX | Exposed on board 3.3V level! |
| RX | Exposed on board 3.3V level! |
| GND | |
| GND | |
| GPIO0 | 3.3V level! (Connected to a push button for programing) |
| GPIO23 | On-board general purpose LED |
| GPIO32 | Relay 1 |
| GPIO33 | Relay 2 |
| GPIO25 | Relay 3 |
| GPIO26 | Relay 4 |
| GPIO27 | Relay 5 |
| GPIO14 | Relay 6 |
| GPIO12 | Relay 7 |
| GPIO13 | Relay 8 |
Basic Config
esphome:
name: ESP32 relayboard
esp32:
board: esp32dev
# Status LED
light:
- platform: status_led
name: "RelayBoard Led"
restore_mode: ALWAYS_ON
pin:
number: GPIO23
# 8 relay outputs, exposed as switches in Home Assistant
switch:
- platform: gpio
pin: GPIO32
name: Relay1
id: relay1
- platform: gpio
pin: GPIO33
name: Relay2
id: relay2
- platform: gpio
pin: GPIO25
name: Relay3
id: relay3
- platform: gpio
pin: GPIO26
name: Relay4
id: relay4
- platform: gpio
pin: GPIO27
name: Relay5
id: relay5
- platform: gpio
pin: GPIO14
name: Relay6
id: relay6
- platform: gpio
pin: GPIO12
name: Relay7
id: relay7
- platform: gpio
pin: GPIO13
name: Relay8
id: relay8
