Generic Chinese Brand WiFi Smart Power Strip

esp8266 us Comes with ESPHome plug

Overview

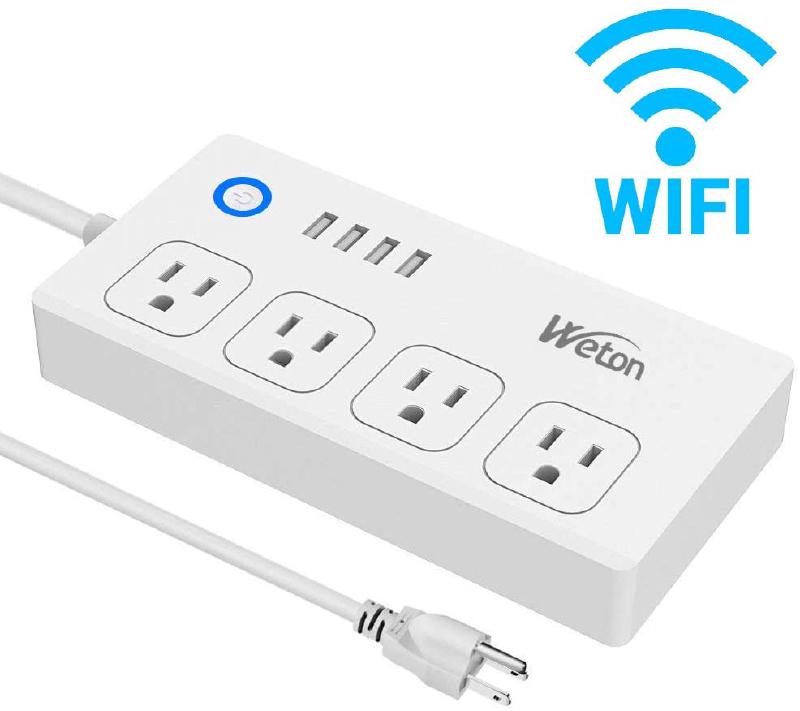

The generic cheap Chinese brand smart power strips of various unheard brands among various platforms, including Amazon, gearbest, banggood, and ebay, all with the product form factor as shown in the picture. This type of device typically has four individually controllable AC outlets (each bonded with a (red) status LED), and four combined USB ports (not individually controllable but bonded with a (red) status LED). Also, there is a pushbutton(power button), and two individually controllable LEDs behind the button (in my specific model blue and white).

GPIO Pinout

For reference only if you want to develop something more than the basic functions.

Pin	Function
GPIO0	Led1 (Inverted: true)
GPIO3	Led2 (Inverted: true)
GPIO4	Socket 1 (Inverted: true)
GPIO5	Push Button (Inverted:true)
GPIO12	Socket 3 (Inverted: true)
GPIO13	Socket 2 (Inverted: true)
GPIO14	Socket 4 (Inverted: true)
GPIO16	4 USB Ports

Firmware Setup

I flashed this device with tuya-convert OTA, which worked straight off. I flashed it directly with ESPHome with no problem.

Code

The settings are straight forward to hand over all the hardwares to Home Assistant, with the only local automation to be the power(push) button, which toggles all relays. (The automation is set to turn on all relays in case any relay is already on to prevent unwanted loss of power to connected device(s).)

substitutions:
  device_name: "***"
esphome:
  name: "${device_name}"
  platform: ESP8266
  board: esp01_1m
# Enable logging
logger:
# Enable Home Assistant API
api:
ota:
  password: "***"
wifi:
  ssid: "***"
  password: "***"
  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "***"
    password: "***"
captive_portal:
switch:
  # Relay - Socket 1
  - platform: gpio
    name: "${device_name} socket 1"
    pin:
      number: 4
      inverted: true
    id: relay_socket_1
  # Relay - Socket 2
  - platform: gpio
    name: "${device_name} socket 2"
    pin:
      number: 13
      inverted: true
    id: relay_socket_2
  # Relay - Socket 3
  - platform: gpio
    name: "${device_name} socket 3"
    pin:
      number: 12
      inverted: true
    id: relay_socket_3
  # Relay - Socket 4
  - platform: gpio
    name: "${device_name} socket 4"
    pin:
      number: 14
      inverted: true
    id: relay_socket_4
  # Relay - USB
  - platform: gpio
    name: "${device_name} USB"
    pin:
      number: 16
      inverted: false
    id: relay_usb
binary_sensor:
  - platform: gpio
    pin:
      number: 5
      inverted: true
    name: "${device_name} Button"
    on_click:
      if:
        condition:
          and:
            - switch.is_on: relay_socket_1
            - switch.is_on: relay_socket_2
            - switch.is_on: relay_socket_3
            - switch.is_on: relay_socket_4
            - switch.is_on: relay_usb
        then:
          - switch.turn_off: relay_socket_1
          - switch.turn_off: relay_socket_2
          - switch.turn_off: relay_socket_3
          - switch.turn_off: relay_socket_4
          - switch.turn_off: relay_usb
        else:
          - switch.turn_on: relay_socket_1
          - switch.turn_on: relay_socket_2
          - switch.turn_on: relay_socket_3
          - switch.turn_on: relay_socket_4
          - switch.turn_on: relay_usb
sensor:
  # WiFi Signal Sensor
  - platform: wifi_signal
    name: "${device_name} WiFi Signal Strength"
    update_interval: 60s
light:
  - platform: binary
    name: "${device_name} LED 1"
    output: light_1_output
  - platform: binary
    name: "${device_name} LED 2"
    output: light_2_output
output:
  - id: light_1_output
    platform: gpio
    pin:
      number: 0
      inverted: true
  - id: light_2_output
    platform: gpio
    pin:
      number: 3
      inverted: true
