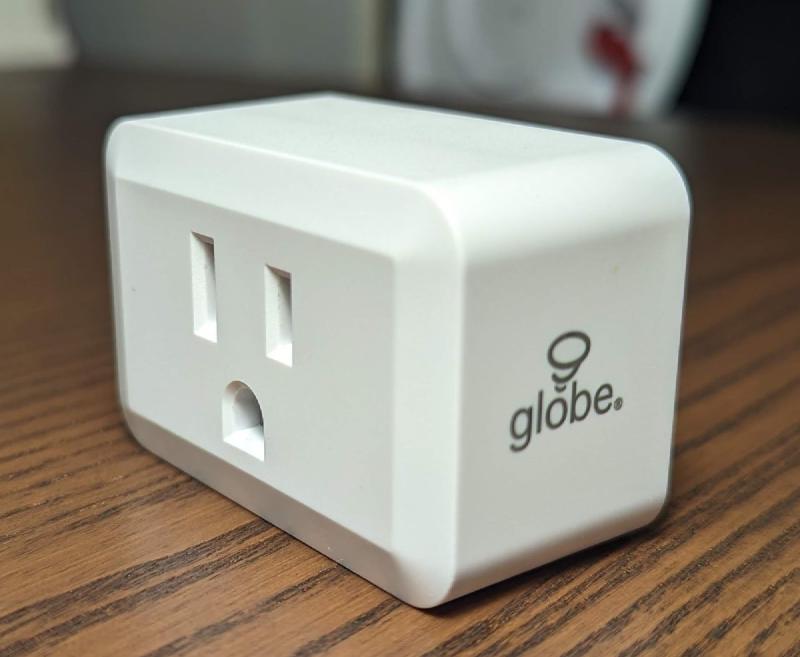

Globe Electric Wi-Fi Smart Plug 50359
Overview
Sold at Costco model (50207)
Custom Firmware Needed
This device uses the WB2S module that comes with Tuya firmware which can be flashed to esphome using cloudcutter following instructions here Support for WB2S modules is available in ESPhome 2023.9.0 (https://github.com/esphome/esphome/pull/3509).
GPIO Pinout
Due to the fact that this uses a custom esphome firmware the pin numbers start with a P instead of the usual GPIO
| Pin | Name | Function |
|---|---|---|
| P7 | LED | Status LED |
| P26 | Button | Power Button |
| P24 | Outlet | Relay |
Basic Configuration
# Globe Electric 50329 smart plug
substitutions:
number: "1"
device_name: globe-plug-${number}
device_description: Globe Electric 50329 Smart plug
friendly_name: Globe Plug ${number}
esphome:
name: ${device_name}
comment: ${device_description}
bk72xx:
board: wb2s
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: "YOUR KEY HERE"
web_server:
port: 80
auth:
username: admin
password: !secret web_server_password
ota:
password: !secret ota_password
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
text_sensor:
- platform: wifi_info
ip_address:
name: ESP IP Address
ssid:
name: ESP Connected SSID
bssid:
name: ESP Connected BSSID
mac_address:
name: ESP Mac Wifi Address
time:
- platform: homeassistant
id: homeassistant_time
sensor:
- platform: uptime
name: ${friendly_name} Uptime
unit_of_measurement: minutes
filters:
- lambda: return x / 60.0;
- platform: wifi_signal
name: ${friendly_name} Signal
update_interval: 60s
light:
- platform: status_led
name: "led"
internal: true
id: led
pin:
number: P7
inverted: true
binary_sensor:
- platform: gpio
pin:
number: P26
inverted: true
id: button1
filters:
- delayed_on: 10ms
- delayed_off: 10ms
on_click:
- switch.toggle: outlet
- platform: status
name: ${friendly_name} status
switch:
- platform: gpio
name: ${friendly_name} Outlet
id: outlet
pin: P24
icon: mdi:power-socket-us
on_turn_on:
- light.turn_on: led
on_turn_off:
- light.turn_off: led
