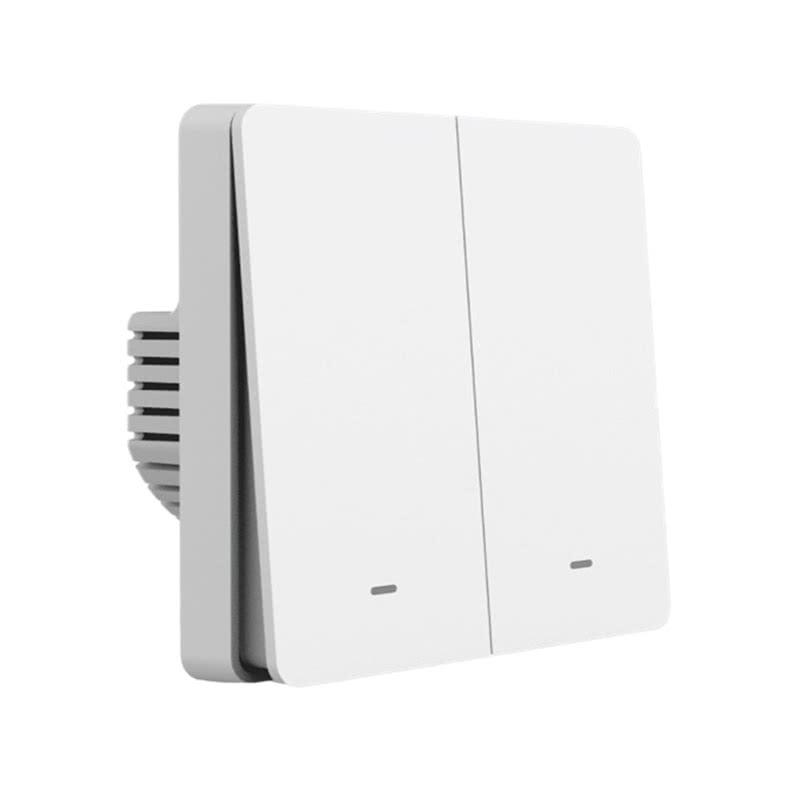

Gosund SW9

esp8266 EU Comes with ESPHome switch

Flashing

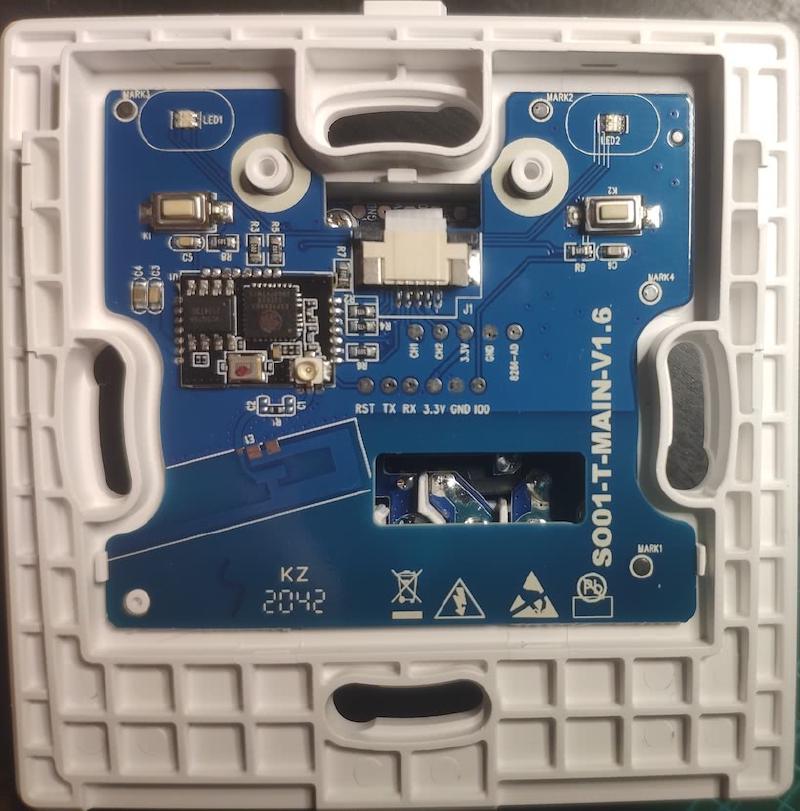

Use a USB to serial adapter, and solder wires onto the pads marked TX, RX, 3.3V and GND. Hold “K2” button when connecting 3.3V to enter flash mode. Tuya Convert may work as well.

GPIO Pinout

Pin	Function
GPIO0	Button 1
GPIO2	State (red) LED 1 (Inverted: true)
GPIO4	State (red) LED 2 (Inverted: true)
GPIO5	Button 2
GPIO12	Relay 2
GPIO13	Status (green) LED
GPIO14	Relay 1

Basic Configuration

substitutions:
  name: "gosund-sw9"
  entity_name_1: "Light 1"
  entity_id_1: "light_1"
  entity_name_2: "Light 2"
  entity_id_2: "light_2"

esphome:
  name: $name
  platform: ESP8266
  board: esp01_1m
  on_boot:
    then:
      - light.turn_on: switch_1_led_state
      - light.turn_on: switch_2_led_state
api:
  encryption:
    key: !secret encryption_key
ota:
  password: "PASSWORD"
wifi:
  ssid: "WIFI_SSID"
  password: "WIFI_PASSWORD"
  power_save_mode: HIGH # for ESP8266 LOW/HIGH are mixed up, esphome/issues/issues/1532
  ap:
    ssid: "${name} Fallback"
    password: "FALLBACK_PASSWD"
logger:
status_led:
  pin:
    number: GPIO013
    inverted: true # remove this to keep switch illuminated with green LEDs
light:
  - platform: status_led
    name: "Switch 1 state LED"
    pin: GPIO2
    id: switch_1_led_state
  - platform: status_led
    name: "Switch 2 state LED"
    pin: GPIO4
    id: switch_2_led_state
  - platform: binary
    id: $entity_id_1
    name: $entity_name_1
    output: relay1
    on_turn_on:
      then:
        - light.turn_off:
            id: switch_1_led_state
    on_turn_off:
      then:
        - light.turn_on:
            id: switch_1_led_state
  - platform: binary
    id: $entity_id_2
    name: $entity_name_2
    output: relay2
    on_turn_on:
      then:
        - light.turn_off:
            id: switch_2_led_state
    on_turn_off:
      then:
        - light.turn_on:
            id: switch_2_led_state
binary_sensor:
  - platform: gpio
    id: button1
    name: "Button 1"
    pin:
      number: GPIO0
      mode: INPUT_PULLUP
      inverted: true
    filters:
      - delayed_on: 10ms
      - delayed_off: 10ms
    on_press:
      then:
        - light.toggle: $entity_id_1
  - platform: gpio
    name: "Button 2"
    id: button2
    pin:
      number: GPIO5
      mode: INPUT_PULLUP
      inverted: true
    filters:
      - delayed_on: 10ms
      - delayed_off: 10ms
    on_press:
      then:
        - light.toggle: $entity_id_2
  - platform: status
    name: "$name status"
output:
  - platform: gpio
    id: relay1
    pin: GPIO14
  - platform: gpio
    id: relay2
    pin: GPIO12
sensor:
  - platform: wifi_signal
    name: "$name WiFi signal"
    update_interval: 60s
  - platform: uptime
    name: "$name uptime"
