Hama Wifi Led Lamp RGBW 10W 806lm

bk72xx eu Comes with ESPHome bulb

Overview

Can be flashed with esphome kickstart via tuya-cloudcutter!! Profile name: 1.1.2 - BK7231T / oem_bk7231s_light_ty

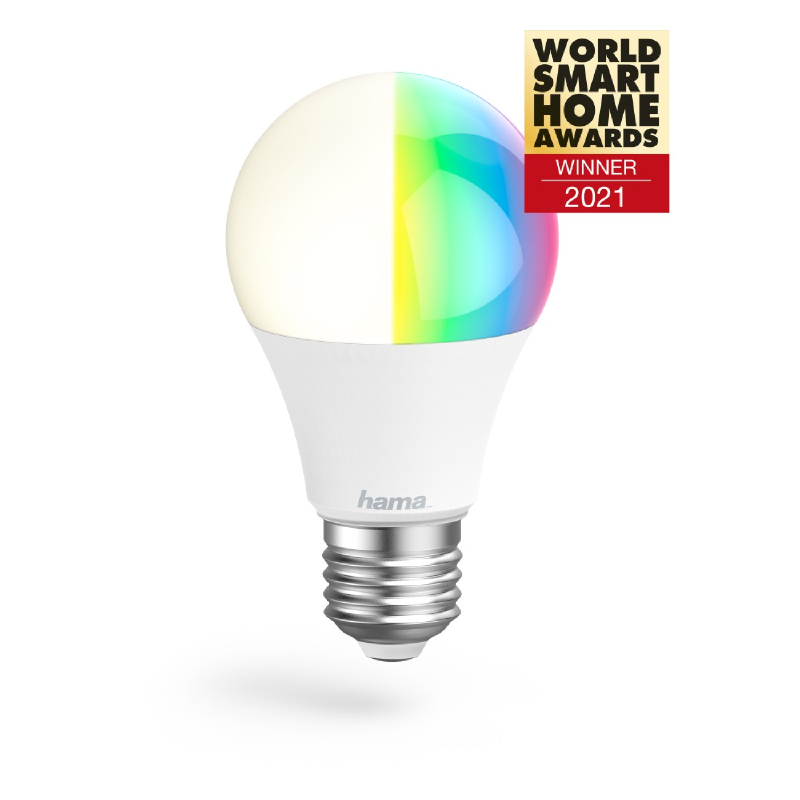

Product Images

GPIO Pinout

Function	GPIO-Pin
PWM_red	26
PWM_green	6
PWM_blue	24
PWM_cold	8
PWM_warn	6

Basic Configuration

#BASIC
Copy
substitutions:
  devicename: hama-bulb-10w
esphome:
  name: $devicename
  friendly_name: hama-bulb-10w
bk72xx:
  board: generic-bk7231t-qfn32-tuya
logger:
web_server:
captive_portal:
mdns:
api:
  password: ""
ota:
  password: ""
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
button:
  - platform: restart
    name: Restart
debug:
  update_interval: 30s
text_sensor:
  - platform: debug
    reset_reason:
      name: Reset Reason
sensor:
  - platform: uptime
    name: Uptime
output:
  - platform: libretiny_pwm
    id: output_red
    pin: P26
  - platform: libretiny_pwm
    id: output_green
    pin: P6
  - platform: libretiny_pwm
    id: output_blue
    pin: P24
  - platform: libretiny_pwm
    id: output_cold
    pin: P8
  - platform: libretiny_pwm
    id: output_warm
    pin: P7
light:
  - platform: rgbww
    id: light_rgbww
    name: $devicename
    color_interlock: true
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
    red: output_red
    green: output_green
    blue: output_blue
    cold_white: output_cold
    warm_white: output_warm
