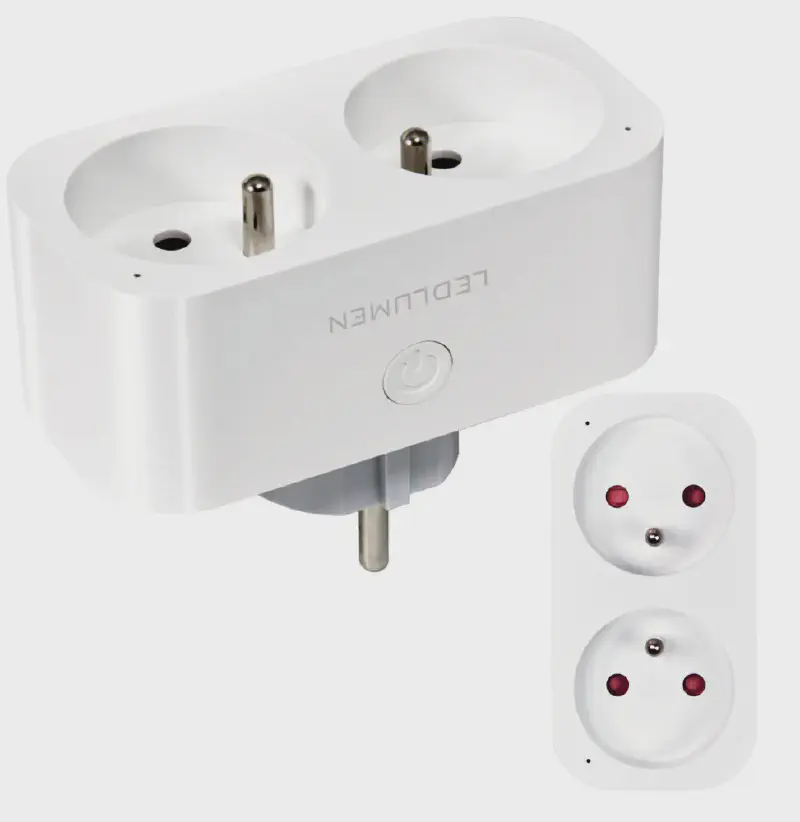

LEDLUMEN SP-03 Smart Plug

esphome:
  name: ledlumen-sp03
bk72xx:
  board: cb2s
# Enable logging
logger:
# Enable Home Assistant API
api:
  encryption:
    key: !secret api_encryption_key
ota:
  password: !secret ota_password
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  # Enable fallback hotspot in case wifi connection fails
  ap:
    ssid: "SP-03 Fallback Hotspot"
    password: ""
web_server:
captive_portal:
text_sensor:
  - platform: libretiny
    version:
      name: LibreTiny Version
binary_sensor:
  - platform: gpio
    id: binary_switch_1
    pin:
      number: P6
      inverted: true
      mode: INPUT_PULLUP
switch:
  - platform: gpio
    id: switch_1
    name: Relay 1
    pin: P26
  - platform: gpio
    id: switch_2
    name: Relay 2
    pin: P24
status_led:
  pin:
    number: P10
    inverted: true
sensor:
  - platform: hlw8012
    model: BL0937
    cf_pin:
      number: P7
      inverted: true
    cf1_pin:
      number: P8
      inverted: true
    sel_pin:
      number: P23
      inverted: true
    current:
      name: BL0937 Current
      filters:
        - multiply: 0.5
    voltage:
      name: BL0937 Voltage
    power:
      name: BL0937 Power
    energy:
      name: BL0937 Energy
    voltage_divider: 775
    current_resistor: 0.001 ohm
    update_interval: 1s
    change_mode_every: 1
