Ledvance E27 RGBW Light 806lm

bk72xx eu Comes with ESPHome light

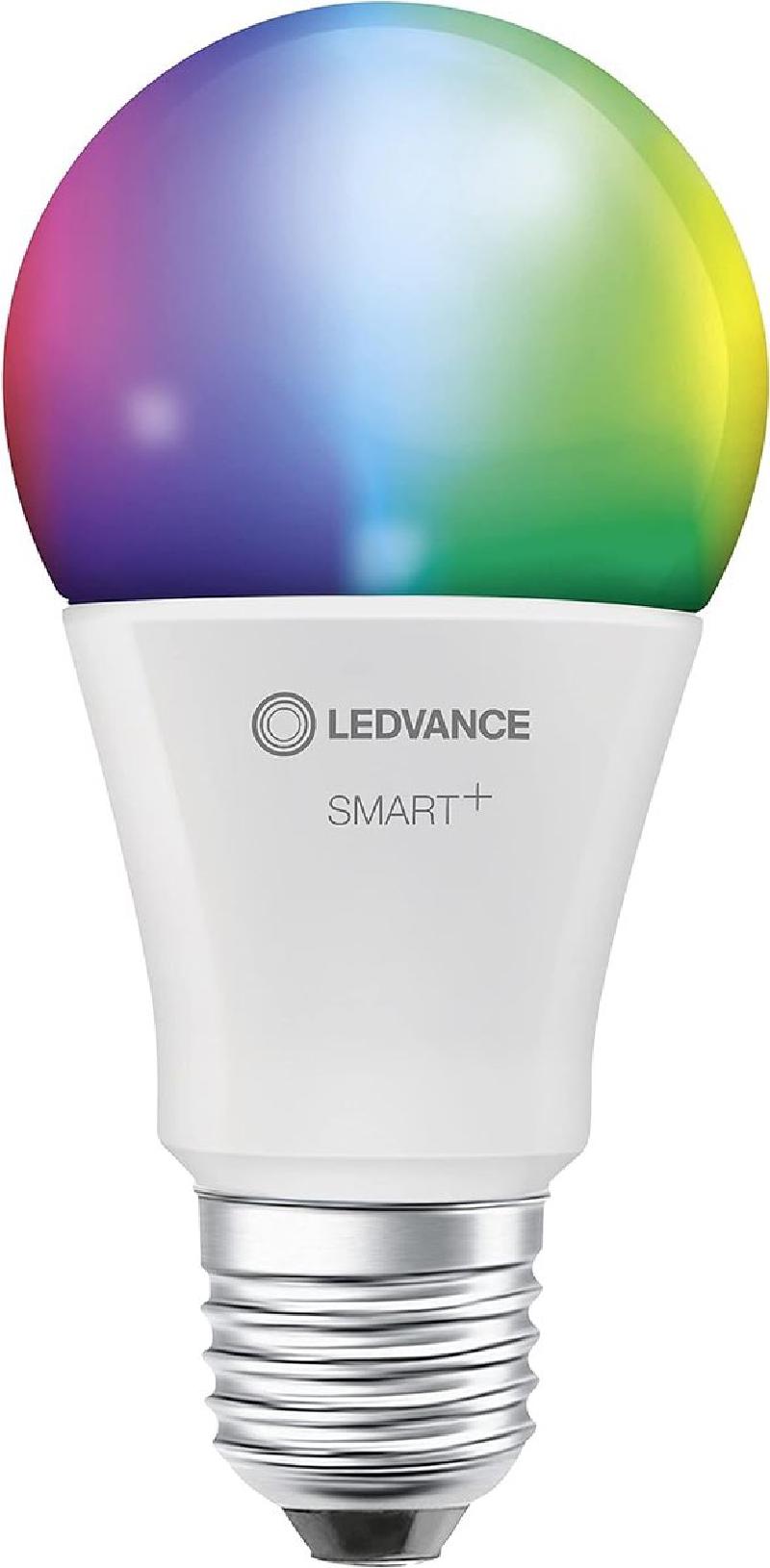

Ledvance E27 RGBW Light 806lm - ledvance-e27-rgbw.jpg

Overview

Product ID: AC33911 Can be flashed with esphome kickstart via tuya-cloudcutter!!

Product Images

GPIO Pinout

FunctionGPIO-Pin
PWM_redP7
PWM_greenP8
PWM_blueP9
PWM_whiteP24

Basic Configuration

esphome:
  name: ledvance-e27-rgbw
  comment: Ledvance E27 RGBW Bulb
  friendly_name: Ledvance E27 RGBW Bulb
bk72xx:
  board: generic-bk7231t-qfn32-tuya
# Make sure logging is not using the serial port
logger:
  baud_rate: 0
# Enable Home Assistant API
api:
ota:
  - platform: esphome
# WiFi connection
wifi:
  ap:
captive_portal:
# Enable Web server
web_server:
output:
  - platform: libretiny_pwm
    id: output_green
    pin: P8
  - platform: libretiny_pwm
    id: output_blue
    pin: P9
  - platform: libretiny_pwm
    id: output_red
    pin: P7
  - platform: libretiny_pwm
    id: output_white
    pin: P24
light:
  - platform: rgbw
    id: light_rgbw
    name: None
    color_interlock: true
    red: output_red
    green: output_green
    blue: output_blue
    white: output_white
    effects:
      - random:
          name: "Random"
      - flicker:
          name: "Flicker"
