Lenovo 800lm RGBCCT Bulb

esp8266 global Comes with ESPHome light

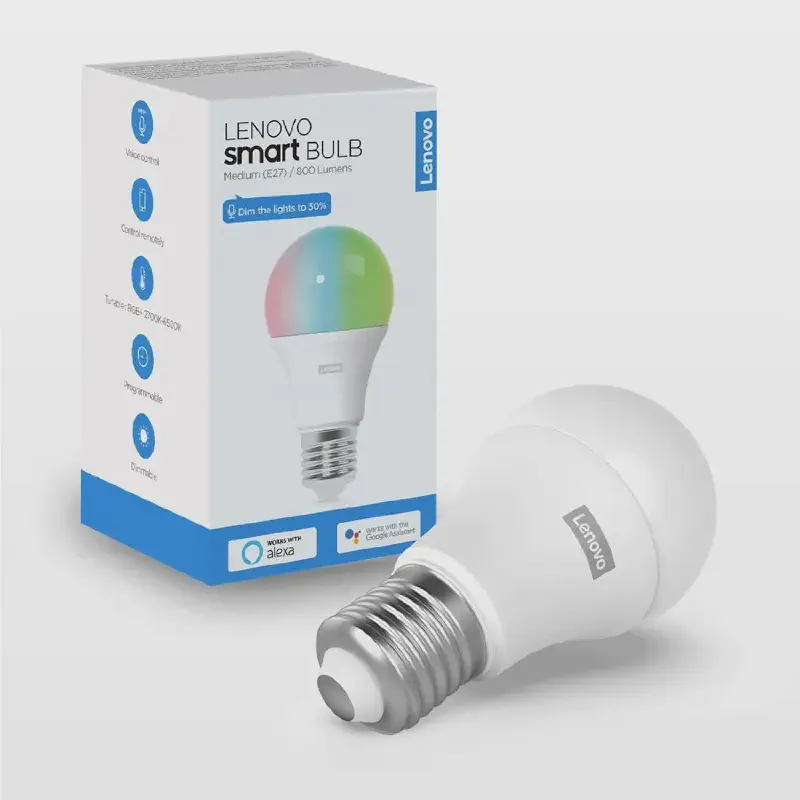

Lenovo 800lm RGBCCT Bulb - lenovo_ZG38C02978.webp

Overview

Lenovo 800 lumen RGB + CCT bulb.

Flashing

This plug can be converted using tuya-convert to flash ESPHome (as of June 2020).

Temperature

Range temperature from 2700 Kelvin to 6500 Kelvin. Information extracted from product description.

GPIO Pinout

PinFunction
GPIO04Red
GPIO12Green
GPIO14Blue
GPIO05White Brightness
GPIO13White Temperature

Basic Configuration

substitutions:
  device_name: "lenovo-800lm-rgbcct"
  friendly_name: "Lenovo 800lm RGBCCT"
esphome:
  name: ${device_name}
esp8266:
  board: esp01_1m
# Enable logging
logger:
# Enable Home Assistant API
api:
ota:
  password: !secret "ota_password"
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: !secret "ap-ssid"
    password: !secret "ap-pass"
captive_portal:
sensor:
  - platform: uptime
    name: ${friendly_name} Uptime
  - platform: wifi_signal
    name: ${friendly_name} Signal Strength
output:
  - platform: esp8266_pwm
    id: output_r
    pin: GPIO4
  - platform: esp8266_pwm
    pin: GPIO12
    id: output_g
  - platform: esp8266_pwm
    pin: GPIO14
    id: output_b
  - platform: esp8266_pwm
    id: output_brightness
    pin: GPIO5
  - platform: esp8266_pwm
    pin:
      number: GPIO13
      inverted: true
    id: output_temp
light:
  - platform: rgbct
    color_interlock: true
    name: ${friendly_name}
    red: output_r
    green: output_g
    blue: output_b
    white_brightness: output_brightness
    color_temperature: output_temp
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
