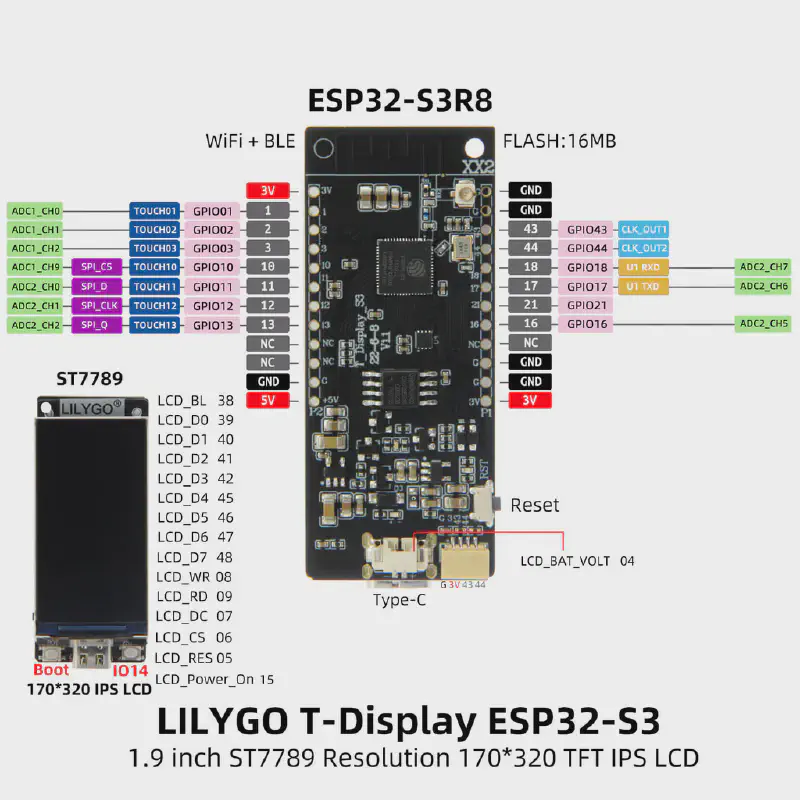

Schematic
Basic Configuration
esphome:
name: s3
friendly_name: ESP32-S3 T-Display
platformio_options:
board_build.f_flash: 80000000L
board_build.partitions: default_16MB.csv
board_build.arduino.memory_type: qio_opi
external_components:
- source: github://landonr/lilygo-tdisplays3-esphome
components: [tdisplays3]
esp32:
board: esp32-s3-devkitc-1
variant: esp32s3
framework:
type: arduino
flash_size: 16MB
logger:
api:
ota:
platform: esphome
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
binary_sensor:
- platform: gpio
pin:
number: GPIO0
inverted: true
name: "Button 1"
- platform: gpio
pin:
number: GPIO14
inverted: true
name: "Button 2"
output:
- platform: ledc
pin: GPIO38
id: gpio38
frequency: 2000
light:
- platform: monochromatic
output: gpio38
name: "Backlight"
restore_mode: RESTORE_DEFAULT_ON
# You can either setup the backlight as a switch like below or make it dimmable using a light output like above
# switch:
# - platform: gpio
# pin: GPIO38
# name: "Backlight"
# id: backlight
# internal: true
# restore_mode: RESTORE_DEFAULT_ON
display:
- platform: tdisplays3
id: disp
update_interval: 1s
rotation: 270
lambda: |-
it.printf(20, 70, id(roboto), Color(255, 0, 0), id(ha_time).now().strftime("%Y-%m-%d %H:%M:%S").c_str());
# Used for example above
font:
- file: "gfonts://Roboto"
id: roboto
size: 30
time:
- platform: homeassistant
id: ha_time
