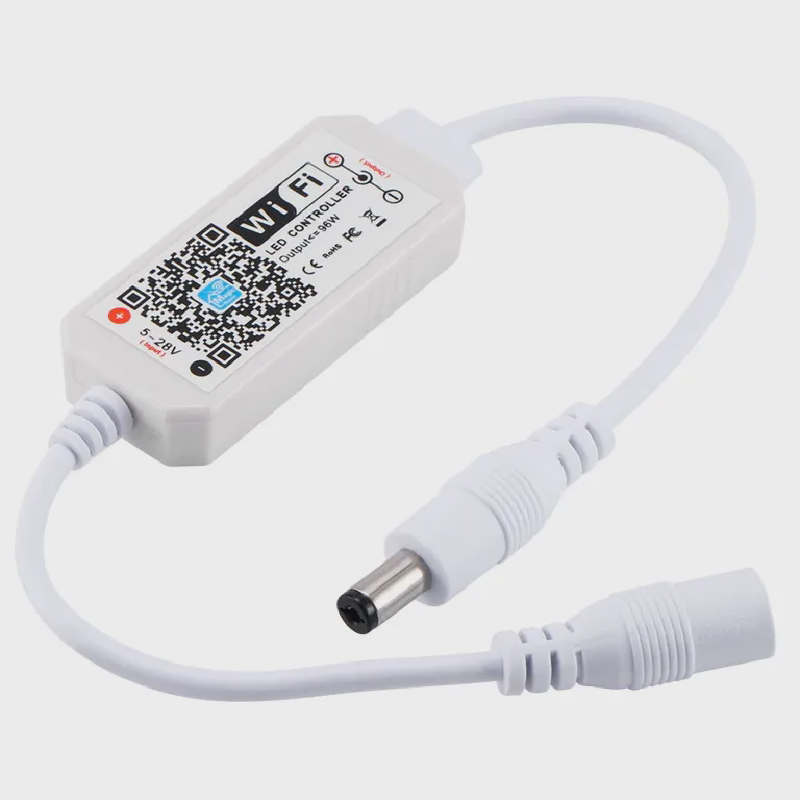

MagicHome-ZJ-WFMN-C-Single Color V1.1 LED Controller

esp8266 global Comes with ESPHome light

General Notes

MagicHome LED controller too be used with an monochromatic LED strip. information_source Please note that MagicHome began to produce devices with BL602 chip instead of ESP. ESPHome is not compatible with BL602. Before buying make sure a controller is using the right chip.

GPIO Pinout

Pin	Function
GPIO12	PWM

Basic Configuration

# Basic Config
substitutions:
  device_name: led-strip
  device_description: RGB LED Strip Controller.
  friendly_name: LED Controller
esphome:
  name: ${device_name}
  comment: ${device_description}
  platform: ESP8266
  board: esp01_1m
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap: #since we listed an SSID above, this AP mode will only enable if no WiFi connection could be made
    ssid: ${friendly_name}_AP
    password: !secret wifi_password
captive_portal:
# Enable logging
logger:
# Enable Home Assistant API
api:
ota:
# Enable web server
web_server:
  port: 80
output:
  - platform: esp8266_pwm
    id: LED_controller
    pin: GPIO12
light:
  - platform: monochromatic
    name: "LED"
    output: LED_controller
