Mirabella Genio Wi-Fi 1.4m Pixel LED Corner Light

rtl87xx au Comes with ESPHome light

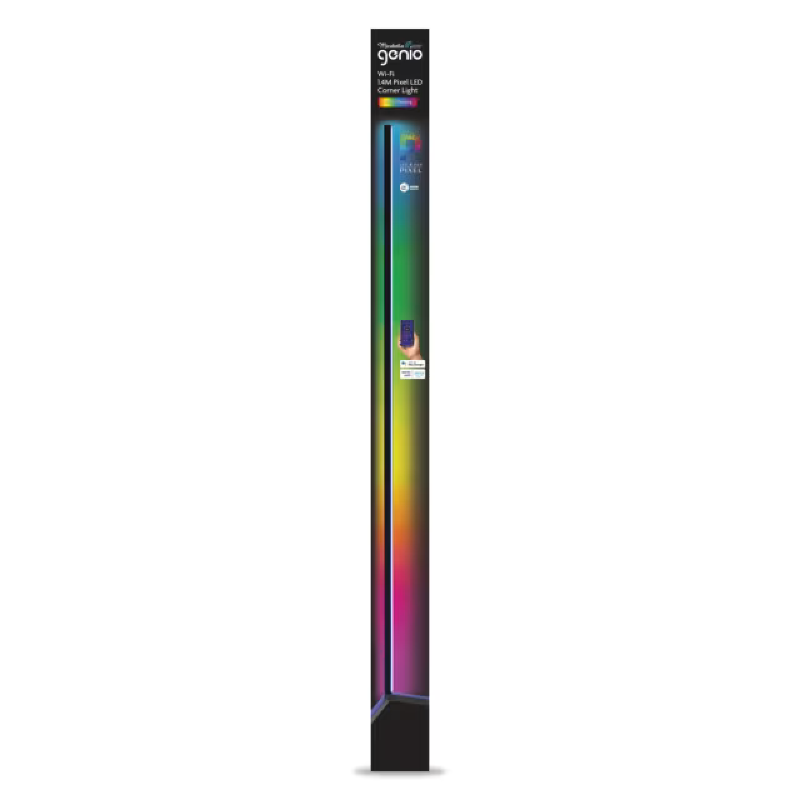

Mirabella Genio Wi-Fi 1.4m Pixel LED Corner Light - Mirabella-Genio-Wi-Fi-1.4m-Pixel-LED-Corner-Light-Packaging.png

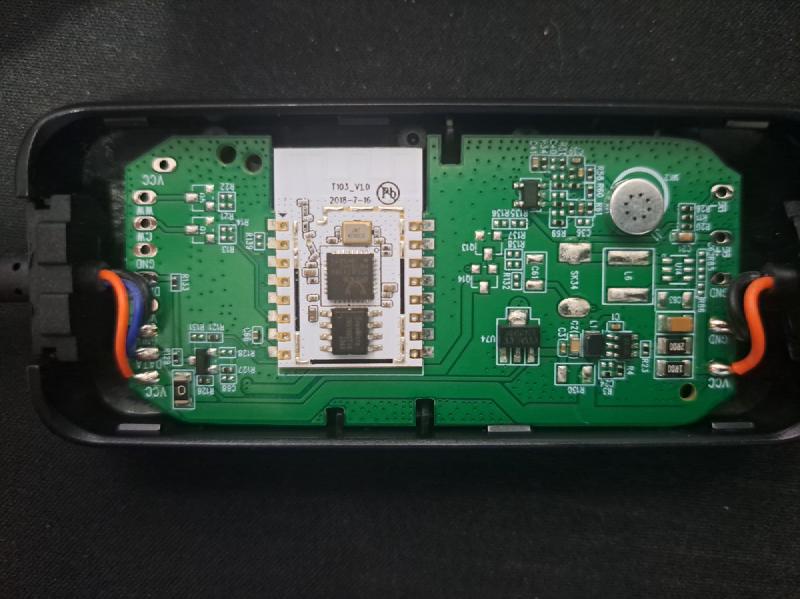

Mirabella Genio Wi-Fi 1.4m Pixel LED Corner Light - Mirabella-Genio-Wi-Fi-1.4m-Pixel-LED-Corner-Light-Teardown.jpg

General Notes

The Mirabella Genio Wi-Fi 1.4m Pixel LED Corner Light is a Tuya-based smart home lamp, featuring a strip of individually addressable leds with a corner stand frame.

They are sold at Kmart NZ and Kmart AU. Inside is a T103_V1.0 module based on the RTL8710BX MCU. I believe this is prossible to reflash using LibreTiny but I have not done so myself so do at your own risk. Please update this page if you are successful.

GPIO Pinout

PinFunction
PA12PWR Push Button
PA05LED Push Button
PA00Sound Push Button
PA23?Light - Data

Basic Configuration

# Config for Mirabella Genio Wi-Fi 1.4m Pixel LED Corner Light
# https://devices.esphome.io/devices/Mirabella-Genio Wi-Fi-1.4m-Pixel-LED-Corner-Light/
rtl87xx:
  board: t103-v1.0
