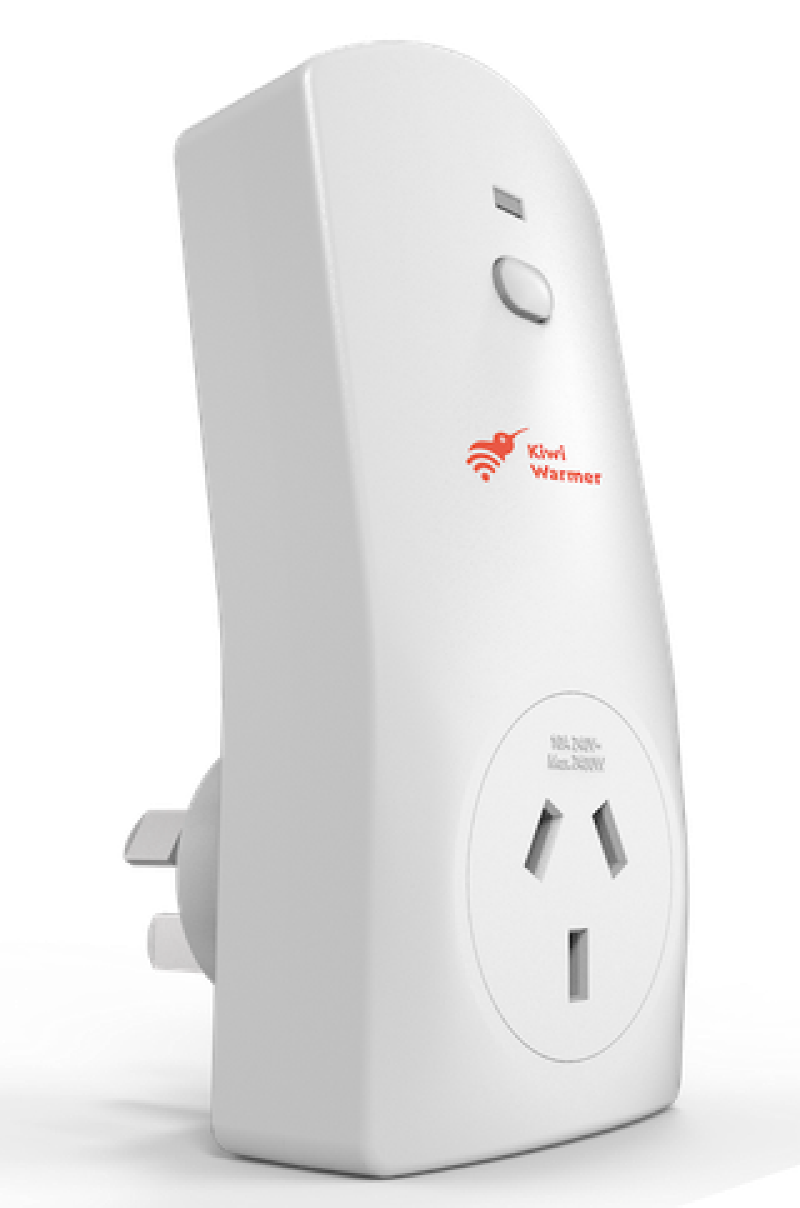

Rowi ESP32 Smart Plug AU and NZ

esp32 au Comes with ESPHome plug

Overview

ESP32-based Smart Plug (Rowi), delivered with the pre-flashed ESPHome firmware - no need to open the device! Configuration: ESP32, Embedded temperature sensor SHTC3, RGB LED.

Maker: Vaiotech (https://www.vaiotech.co.nz/products/) Purchase online in Australia and New Zealand: https://www.kiwi-warmer.co.nz/for-developers/

GPIO Pinout

Pin	Function
GPIO4	Button
GPIO2	Relay
GPI18	LED RED (inverted)
GPI19	LED GREEN (inverted)
GPI21	LED BLUE (inverted)
GPI16	I2C_SDA
GPI17	I2C_SCL

Basic Configuration

substitutions:
  name: rowi-plug
  friendly_name: "Rowi Plug"
esphome:
  name: ${name}
  name_add_mac_suffix: true
  project:
    name: "kiwi-warmer.rowi-plug"
    version: "1.0"
esp32:
  board: nodemcu-32s
wifi:
  ap: {}
captive_portal:
logger:
api:
ota:
web_server:
dashboard_import:
  package_import_url: github://vt-vaio/rowi/rowi-plug.yaml@main
binary_sensor:
  - platform: gpio
    pin:
      number: GPIO4
      mode:
        input: true
        pullup: true
      inverted: true
    name: "${friendly_name} Button"
    disabled_by_default: true
    on_click:
      - switch.toggle: relay
  - platform: status
    name: "${friendly_name} Status"
switch:
  - platform: gpio
    name: "${friendly_name}"
    pin: GPIO2
    id: relay
output:
  - platform: ledc
    id: red
    pin:
      number: GPIO18
      inverted: true
  - platform: ledc
    id: green
    pin:
      number: GPIO19
      inverted: true
  - platform: ledc
    id: blue
    pin:
      number: GPIO21
      inverted: true
light:
  - platform: rgb
    name: ${friendly_name}
    disabled_by_default: true
    id: rgb_light
    red: red
    green: green
    blue: blue
i2c:
  sda: GPIO16
  scl: GPIO17
sensor:
  - platform: shtcx
    temperature:
      name: "${friendly_name} Temperature"
    humidity:
      name: "${friendly_name} Humidity"
  - platform: uptime
    name: "${friendly_name} Uptime"
    disabled_by_default: true
    id: uptime_sensor
text_sensor:
  - platform: wifi_info
    ip_address:
      name: "${friendly_name} IP Address"
      disabled_by_default: true
