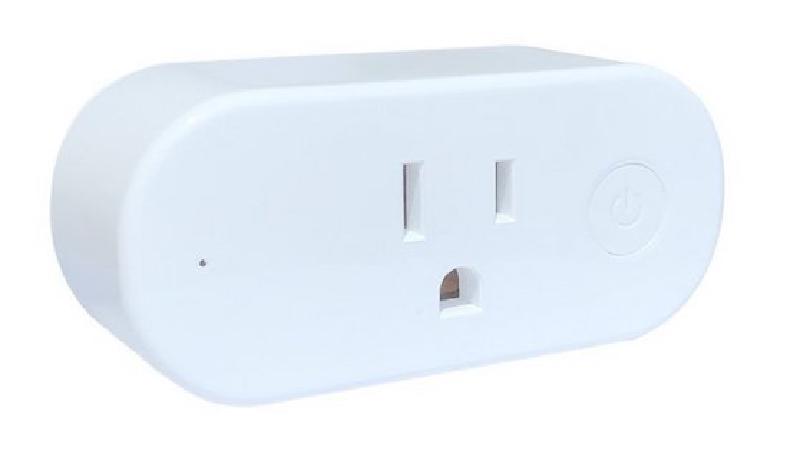

Shelly Plug US

esp8266 us Comes with ESPHome plug

GPIO Pinout

Pin	Function
GPIO0	LED (Inverted)
GPIO2	Blue LED (Inverted)
GPIO4	Relay
GPIO5	HLWBL CF Pin (active power)
GPIO12	HLWBL SEL
GPIO13	Button
A0	NTC
HLWBL CF1 pin (GPIO14 according to Tasmota template) does not appear to connected in my test and returns junk data.
A0 might be hooked up to a NTC, I do not have the values needed to calibrate it to return proper data so I am not including it in my configuration.

Configuration as relay with overpower protection

When integration with home assistant exists, it will appear as a switch, 6 sensors (button state, power, voltage, current, wifi strength and total daily energy) When the max_power is exceeded, the relay will be switched off and a persistent notification will be created in home-assistant Credit and thanks to

https://templates.blakadder.com/shelly_plug_US.html for documenting the GPIO pins though I found some errors.
https://github.com/esphome/esphome-devices/blob/main/src/docs/devices/Shelly-Plug-S/index.md, much of this borrows from it.
https://www.reddit.com/r/homeautomation/comments/ps9iey/esphome_config_for_shelly_plug_us/, magic numbers for tuning sensors
https://devices.esphome.io/devices/Aoycocr-X10S-Plug/, identical looking device from another manufacturer
https://fccid.io/2ALAY-SHELLY, FCC documentation including several pictures of the circuts.

substitutions:
  devicename: shelly-plug-us
  relay_name: Outlet
  wifi_ssid: !secret wifi_ssid
  wifi_pass: !secret wifi_pass
  api_pass: !secret api_pass
  ota_pass: !secret ota_pass
  # 110VAC * 15A , specs are from Shelly specs
  max_power: "1650"
  # Higher value gives lower watt readout
  current_res: "0.00290"
  # Lower value gives lower voltage readout
  voltage_div: "940"
  # Relay state on boot. Other options can be found here https://esphome.io/components/switch/gpio.html
  restore_mode: RESTORE_DEFAULT_ON
esphome:
  name: ${devicename}
  platform: ESP8266
  board: esp8285
wifi:
  ssid: ${wifi_ssid}
  password: ${wifi_pass}
# Enable logging
logger:
# Enable Home Assistant API
api:
  encryption:
    key: !secret api_key
ota:
  password: ${ota_pass}
time:
  - platform: homeassistant
    id: my_time
binary_sensor:
  - platform: gpio
    pin:
      number: GPIO13
      inverted: True
    name: "${devicename}_button"
    on_press:
      - switch.toggle: relay
      - output.turn_on: led_r
      - delay: 500ms
      - output.turn_off: led_r
output:
  - platform: gpio
    pin:
      number: GPIO00
      inverted: True
    id: led_r
  - platform: gpio
    pin:
      number: GPIO02
      inverted: True
    id: led_b
interval:
  - interval: 1s
    then:
      if:
        condition:
          wifi.connected:
        then:
          - output.turn_off: led_r
          - output.turn_on: led_b
        else:
          - output.turn_off: led_b
          - delay: 500ms
          - output.turn_on: led_r
          - delay: 500ms
          - output.turn_off: led_r
          - delay: 500ms
          - output.turn_on: led_b
switch:
  - platform: gpio
    pin: GPIO4
    id: relay
    restore_mode: ${restore_mode}
    name: "${relay_name}"
sensor:
  - platform: wifi_signal
    name: "${devicename} WiFi Signal"
    update_interval: 5min
  - platform: hlw8012
    sel_pin:
      number: GPIO12
      inverted: true
    cf_pin: GPIO5
    cf1_pin: GPIO14
    current_resistor: ${current_res}
    voltage_divider: ${voltage_div}
    current:
      name: "${relay_name} current"
    voltage:
      name: "${relay_name} voltage"
    power:
      name: "${relay_name} power"
      id: power
      unit_of_measurement: "W"
      icon: mdi:flash-outline
      # filters:
      # # This calibrations we generated with a 40W and 100W incandescent light bulb
      # - calibrate_linear:
      #   - 0 -> 0
      #   - 206.9 -> 40
      #   - 540 -> 100
      on_value_range:
        - above: ${max_power}
          then:
            - switch.turn_off: relay
            - homeassistant.service:
                service: persistent_notification.create
                data:
                  title: Message from ${devicename}
                data_template:
                  message: Switch turned off because power exceeded ${max_power}W
    update_interval: 10s
  - platform: total_daily_energy
    name: "${devicename} daily energy"
    power_id: power
    filters:
      # Multiplication factor from W to kW is 0.001
      - multiply: 0.001
    unit_of_measurement: kWh
