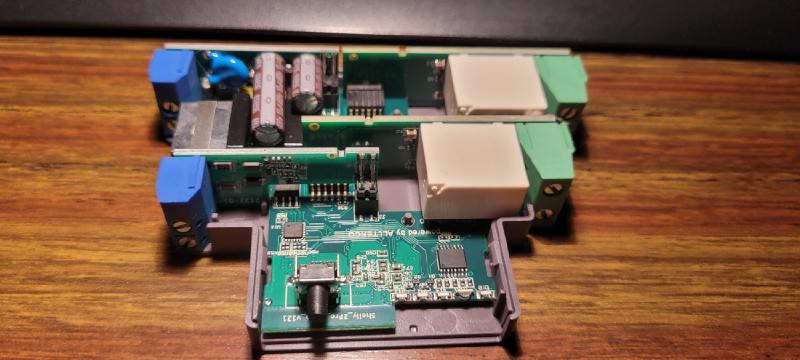

Information about the pinout and internals of the Shelly Pro 2. It’s the same board as the Shelly Pro 1. The only difference is the addition of a second relay.

Pinout

ESP32 DOWDQ6	Component
GPIO 4	SN74HC595B SPI CS
GPIO 12	SPI MISO
GPIO 13	SPI MOSI
GPIO 14	SPI CLK
GPIO 17	LAN8720A CLKIN
GPIO 18	LAN8720A MDIO
GPIO 19	LAN8720A TXD0
GPIO 21	LAN8720A TXEN
GPIO 22	LAN8720A TXD1
GPIO 23	LAN8720A MDC
GPIO 25	LAN8720A RXD0
GPIO 26	LAN8720A RXD1
GPIO 27	LAN8720A CRS_DV
GPIO 35	Reset Button
GPIO 36	ADC Temperature 1
GPIO 37	ADC Temperature 2
GPIO 38	Switch input 1
GPIO 39	Switch input 2

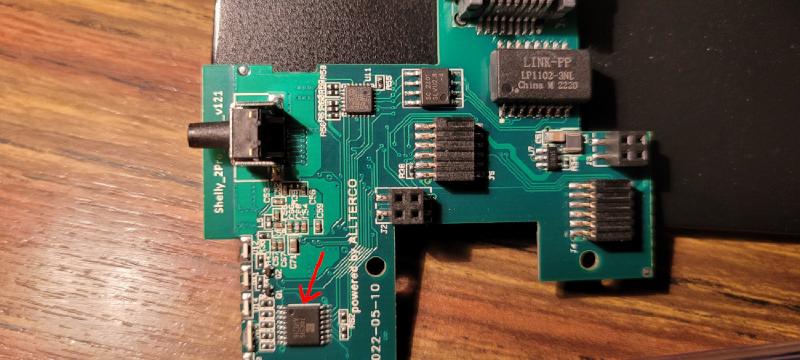

Shift register

A shift register is controlling the WIFI RGB LEDs and the 2 relays.

SN74HC595B	Component
QA	Relay 1 + Out 1 LED
QB	Relay 2 + Out 2 LED
QC	WIFI RGB LED (Blue)
QD	WIFI RGB LED (Green)
QE	WIFI RGB LED (Red)
QF	NC
QG	NC
QH	NC
The Out 1 status LED and the relay 1 are on the same output. The same is true
for the Out 2 status LED and the relay 2. Turning on the relay turns the
corresponding LED on.
The WIFI LED is an RGB LED. By turning each component on or off, you have
access to 8 configurations:
R	G
-	-
0	0
0	0
0	1
0	1
1	0
1	0
1	1
1	1

Programming Pinout

Shelly Pro pinout Note that the pin pitch is 1.27mm, so standard 2.54mm Dupont cables won’t work.

Basic Configuration

esphome:
  name: shelly-pro-2
esp32:
  board: esp32dev
  framework:
    type: arduino
logger:
api:
ota:
  platform: esphome
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
    ssid: "Shelly-Pro-2"
    password: "BzwFc7HsRihG"
# ethernet:
#   type: LAN8720
#   mdc_pin: GPIO23
#   mdio_pin: GPIO18
#   clk_mode: GPIO17_OUT
captive_portal:
spi:
  clk_pin: GPIO14
  mosi_pin: GPIO13
  miso_pin:
    number: GPIO12
    ignore_strapping_warning: true
button:
  - platform: shutdown
    id: do_shutdown
  - platform: restart
    name: "Restart"
    id: do_restart
binary_sensor:
  - platform: gpio
    id: reset_button
    pin:
      number: 35
      inverted: true
    on_release:
      then:
        button.press: do_restart
  - platform: gpio
    id: input1
    pin:
      number: 38
    on_press:
      then:
        switch.toggle: relay1
  - platform: gpio
    id: input2
    pin:
      number: 39
    on_press:
      then:
        switch.toggle: relay2
sensor:
  - platform: adc
    id: temp_voltage1
    pin: GPIO36
    attenuation: auto
  - platform: resistance
    id: temp_resistance1
    sensor: temp_voltage1
    configuration: DOWNSTREAM
    resistor: 10kOhm
  - platform: ntc
    sensor: temp_resistance1
    name: Temperature 1
    unit_of_measurement: "°C"
    accuracy_decimals: 1
    icon: "mdi:thermometer"
    calibration:
      b_constant: 3350
      reference_resistance: 10kOhm
      reference_temperature: 298.15K
    on_value_range:
      - above: 90
        then:
          - switch.turn_off: relay1
          - switch.turn_off: relay2
          - button.press: do_shutdown
  - platform: adc
    id: temp_voltage2
    pin: GPIO37
    attenuation: auto
  - platform: resistance
    id: temp_resistance2
    sensor: temp_voltage2
    configuration: DOWNSTREAM
    resistor: 10kOhm
  - platform: ntc
    sensor: temp_resistance2
    name: Temperature 2
    unit_of_measurement: "°C"
    accuracy_decimals: 1
    icon: "mdi:thermometer"
    calibration:
      b_constant: 3350
      reference_resistance: 10kOhm
      reference_temperature: 298.15K
    on_value_range:
      - above: 90
        then:
          - switch.turn_off: relay1
          - switch.turn_off: relay2
          - button.press: do_shutdown
sn74hc595:
  - id: 'sn74hc595_hub'
    type: spi
    latch_pin: GPIO4
    sr_count: 1
switch:
  - platform: gpio
    name: "Relay 1"
    id: relay1
    pin:
      sn74hc595: sn74hc595_hub
      number: 0
      inverted: false
  - platform: gpio
    name: "Relay 2"
    id: relay2
    pin:
      sn74hc595: sn74hc595_hub
      number: 1
      inverted: false
  - platform: gpio
    id: wifi_led_blue
    pin:
      sn74hc595: sn74hc595_hub
      number: 2
      inverted: true
  - platform: gpio
    id: wifi_led_green
    pin:
      sn74hc595: sn74hc595_hub
      number: 3
      inverted: true
  - platform: gpio
    id: wifi_led_red
    pin:
      sn74hc595: sn74hc595_hub
      number: 4
      inverted: true
