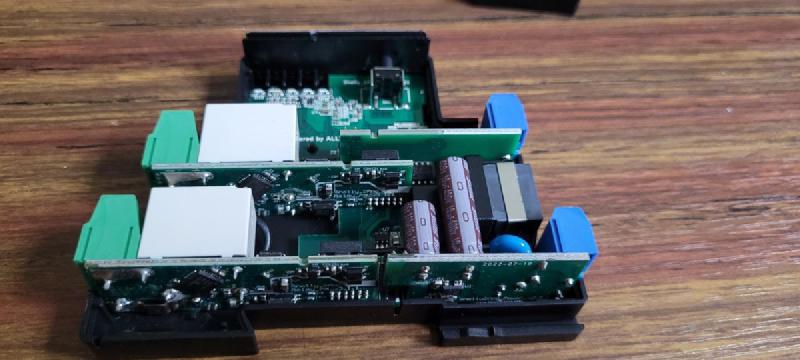

Information about the pinout and internals of the Shelly Pro 2 PM. It’s the same board as the Shelly Pro 2. The only difference is the addition of two ADE7953 chips (one on each relay board).

Pinout

ESP32 DOWDQ6	Component
GPIO 0	ADE7953 #1 SPI CS
GPIO 2	ADE7953 RST
GPIO 4	SN74HC595B SPI CS
GPIO 12	SPI MISO
GPIO 13	SPI MOSI
GPIO 14	SPI CLK
GPIO 15	ADE7953 #2 SPI CS
GPIO 17	LAN8720A CLKIN
GPIO 18	LAN8720A MDIO
GPIO 19	LAN8720A TXD0
GPIO 21	LAN8720A TXEN
GPIO 22	LAN8720A TXD1
GPIO 23	LAN8720A MDC
GPIO 25	LAN8720A RXD0
GPIO 26	LAN8720A RXD1
GPIO 27	LAN8720A CRS_DV
GPIO 35	Reset Button
GPIO 36	ADC Temperature 1
GPIO 37	ADC Temperature 2
GPIO 38	Switch input 1
GPIO 39	Switch input 2

Shift register

A shift register is controlling the WIFI RGB LEDs and the 2 relays.

SN74HC595B	Component
QA	Relay 1 + Out 1 LED
QB	Relay 2 + Out 2 LED
QC	WIFI RGB LED (Blue)
QD	WIFI RGB LED (Green)
QE	WIFI RGB LED (Red)
QF	NC
QG	NC
QH	NC
The Out 1 status LED and the relay 1 are on the same output. The same is true
for the Out 2 status LED and the relay 2. Turning on the relay turns the
corresponding LED on.
The WIFI LED is an RGB LED. By turning each component on or off, you have
access to 8 configurations:
R	G
-	-
0	0
0	0
0	1
0	1
1	0
1	0
1	1
1	1

Programming Pinout

Shelly Pro pinout Note that the pin pitch is 1.27mm, so standard 2.54mm Dupont cables won’t work.

ADE7953

Each of the relay sub-boards has a dedicated ADE7953 chip to provide the power monitoring feature. While each ADE7953 provides two channels A & B, only the channel A of each measures the valuable data. Channel B is likely measuring references (0V, 0A, 0W).

Reset pin

Each ADE7953 has a reset pin, but both reset pins are connected to the same GPIO (GPIO2). The reset pin is active low, which means that if we don’t do anything, reset will be asserted and maintained and the ESP32 won’t be able to talk to the ADE7953s. So we need to set GPIO2 to a high value. See the output: section in the configuration below.

Calibration data

The active power values will both be negative, so we need to multiply them by -1 to get them both positive.

Arduino

On arduino platform, there is nothing to specify: the default values are correct.

esp-idf

On esp-idf platform, for some unknown reason the ADE7953 default value for voltage_gain, current_gain_* and active_power_gain_* (which is 0x400000) is not taken into account, and 0x200000 ends up in the registers. The only way I found to get around it on esp-idf platform is to use following hack for each ADE7953 configuration:

voltage_pga_gain: 2x
current_pga_gain_a: 2x
current_pga_gain_b: 2x
active_power_gain_a: 0x200000
active_power_gain_b: 0x200000

0x100000 will actually end up in the active_power_gain_* registers but together with the other values, it will be correct.

Basic Configuration

esphome:
  name: shelly-pro-2-pm
esp32:
  board: esp32dev
  framework:
    type: arduino
logger:
api:
ota:
  platform: esphome
wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
    ssid: "Shelly-Pro-2-PM"
    password: "BzwFc7HsRihG"
# ethernet:
#   type: LAN8720
#   mdc_pin: GPIO23
#   mdio_pin: GPIO18
#   clk_mode: GPIO17_OUT
captive_portal:
spi:
  clk_pin: GPIO14
  mosi_pin: GPIO13
  miso_pin:
    number: GPIO12
    ignore_strapping_warning: true
button:
  - platform: shutdown
    id: do_shutdown
  - platform: restart
    name: "Restart"
    id: do_restart
binary_sensor:
  - platform: gpio
    id: reset_button
    pin:
      number: 35
      inverted: true
    on_release:
      then:
        button.press: do_restart
  - platform: gpio
    id: input1
    pin:
      number: 38
    on_press:
      then:
        switch.toggle: relay1
  - platform: gpio
    id: input2
    pin:
      number: 39
    on_press:
      then:
        switch.toggle: relay2
sensor:
  - platform: adc
    id: temp_voltage1
    pin: GPIO36
    attenuation: auto
  - platform: resistance
    id: temp_resistance1
    sensor: temp_voltage1
    configuration: DOWNSTREAM
    resistor: 10kOhm
  - platform: ntc
    sensor: temp_resistance1
    name: Temperature 1
    unit_of_measurement: "°C"
    accuracy_decimals: 1
    icon: "mdi:thermometer"
    calibration:
      b_constant: 3350
      reference_resistance: 10kOhm
      reference_temperature: 298.15K
    on_value_range:
      - above: 90
        then:
          - switch.turn_off: relay1
          - switch.turn_off: relay2
          - button.press: do_shutdown
  - platform: adc
    id: temp_voltage2
    pin: GPIO37
    attenuation: auto
  - platform: resistance
    id: temp_resistance2
    sensor: temp_voltage2
    configuration: DOWNSTREAM
    resistor: 10kOhm
  - platform: ntc
    sensor: temp_resistance2
    name: Temperature 2
    unit_of_measurement: "°C"
    accuracy_decimals: 1
    icon: "mdi:thermometer"
    calibration:
      b_constant: 3350
      reference_resistance: 10kOhm
      reference_temperature: 298.15K
    on_value_range:
      - above: 90
        then:
          - switch.turn_off: relay1
          - switch.turn_off: relay2
          - button.press: do_shutdown
  - platform: ade7953_spi
    id: ade7953_1
    cs_pin:
      number: GPIO0
      ignore_strapping_warning: true
    voltage:
      id: voltage1
      name: "Voltage 1"
    current_a:
      id: current1
      name: "Current 1"
      filters:
        - lambda: |-
            if (x <= 0.02) return 0;
            return x;
    active_power_a:
      id: power1
      name: "Power 1"
      filters:
        - multiply: -1
        - lambda: |-
            if (x <= 0.2) return 0;
            return x;
  - platform: ade7953_spi
    id: ade7953_2
    cs_pin:
      number: GPIO15
      ignore_strapping_warning: true
    voltage:
      id: voltage2
      name: "Voltage 2"
    current_a:
      id: current2
      name: "Current 2"
      filters:
        - lambda: |-
            if (x <= 0.02) return 0;
            return x;
    active_power_a:
      id: power2
      name: "Power 2"
      filters:
        - multiply: -1
        - lambda: |-
            if (x <= 0.2) return 0;
            return x;
# Necessary for ADE7953s to come out of reset
# The reset pin is common to both ADE7953 chips
output:
  - platform: gpio
    id: ade7953_reset
    pin:
      number: GPIO2
      inverted: true
      ignore_strapping_warning: true
sn74hc595:
  - id: 'sn74hc595_hub'
    type: spi
    latch_pin: GPIO4
    sr_count: 1
switch:
  - platform: gpio
    name: "Relay 1"
    id: relay1
    pin:
      sn74hc595: sn74hc595_hub
      number: 0
      inverted: false
  - platform: gpio
    name: "Relay 2"
    id: relay2
    pin:
      sn74hc595: sn74hc595_hub
      number: 1
      inverted: false
  - platform: gpio
    id: wifi_led_blue
    pin:
      sn74hc595: sn74hc595_hub
      number: 2
      inverted: true
  - platform: gpio
    id: wifi_led_green
    pin:
      sn74hc595: sn74hc595_hub
      number: 3
      inverted: true
  - platform: gpio
    id: wifi_led_red
    pin:
      sn74hc595: sn74hc595_hub
      number: 4
      inverted: true

Configuration as a garage door (or shutter)

In this setup, we control a garage door motor. We plug the opening phase to relay1, and the closing phase to the relay2. We plug an open button to input1, and a close button to input2. We can then control the garage door either using the physical wall switch, and/or using MQTT.

substitutions:
  mqtt_server: mqtt.local
  client_id: garage_door
  last_will_topic: "garage_door/status"
  state_topic: "garage_door/state"
  command_topic: "garage_door/set"
  position_state_topic: "garage_door/position/state"
  position_command_topic: "garage_door/position/set"
esphome:
  name: garage-door
esp32:
  board: esp32dev
  framework:
    type: arduino
logger:
  level: INFO
ota:
  platform: esphome
web_server:
  port: 80
  local: true
  ota: false
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
mqtt:
  broker: ${mqtt_server}
  port: 1883
  username: !secret mqtt_username
  password: !secret mqtt_password
  client_id: ${client_id}
  clean_session: true
  discover_ip: false
  discovery: false
  topic_prefix: null
  log_topic: null
  birth_message:
    topic: ${last_will_topic}
    payload: online
    qos: 1
  will_message:
    topic: ${last_will_topic}
    payload: offline
    qos: 1
  shutdown_message:
    topic: ${last_will_topic}
    payload: offline
    qos: 1
spi:
  clk_pin: GPIO14
  mosi_pin: GPIO13
  miso_pin:
    number: GPIO12
    ignore_strapping_warning: true
binary_sensor:
  - platform: gpio
    id: reset_button
    pin:
      number: 35
      inverted: true
    on_release:
      then:
        button.press: do_restart
  - platform: gpio
    id: input1
    pin:
      number: 38
    on_press:
      then:
        cover.open: garage_door
  - platform: gpio
    id: input2
    pin:
      number: 39
    on_press:
      then:
        cover.close: garage_door
  - platform: status
    id: status1
    on_press:
      then:
        switch.turn_on: wifi_led_blue
    on_release:
      then:
        switch.turn_off: wifi_led_blue
button:
  - platform: shutdown
    id: do_shutdown
  - platform: restart
    name: "Restart"
    id: do_restart
sensor:
  - platform: adc
    id: temp_voltage1
    pin: GPIO36
    attenuation: auto
  - platform: resistance
    id: temp_resistance1
    sensor: temp_voltage1
    configuration: DOWNSTREAM
    resistor: 10kOhm
  - platform: ntc
    sensor: temp_resistance1
    name: "Temperature 1"
    unit_of_measurement: "°C"
    accuracy_decimals: 1
    icon: "mdi:thermometer"
    calibration:
      b_constant: 3350
      reference_resistance: 10kOhm
      reference_temperature: 298.15K
    on_value_range:
      - above: 90
        then:
          - switch.turn_off: relay1
          - switch.turn_off: relay2
          - button.press: do_shutdown
  - platform: adc
    id: temp_voltage2
    pin: GPIO37
    attenuation: auto
  - platform: resistance
    id: temp_resistance2
    sensor: temp_voltage2
    configuration: DOWNSTREAM
    resistor: 10kOhm
  - platform: ntc
    sensor: temp_resistance2
    name: "Temperature 2"
    unit_of_measurement: "°C"
    accuracy_decimals: 1
    icon: "mdi:thermometer"
    calibration:
      b_constant: 3350
      reference_resistance: 10kOhm
      reference_temperature: 298.15K
    on_value_range:
      - above: 90
        then:
          - switch.turn_off: relay1
          - switch.turn_off: relay2
          - button.press: do_shutdown
  - platform: ade7953_spi
    id: ade7953_1
    cs_pin:
      number: GPIO0
      ignore_strapping_warning: true
    voltage:
      id: voltage1
      name: "Open Voltage"
      filters:
        - throttle: 5s
    current_a:
      id: current1
      name: "Open current"
      filters:
        - lambda: |-
            if (x <= 0.02) return 0;
            return x;
    active_power_a:
      id: power1
      name: "Open power"
      filters:
        - multiply: -1
        - lambda: |-
            if (x <= 0.2) return 0;
            return x;
        - throttle: 1s
    update_interval: 0.4s
  - platform: ade7953_spi
    id: ade7953_2
    cs_pin:
      number: GPIO15
      ignore_strapping_warning: true
    voltage:
      id: voltage2
      name: "Close Voltage"
      filters:
        - throttle: 5s
    current_a:
      id: current2
      name: "Close current"
      filters:
        - lambda: |-
            if (x <= 0.02) return 0;
            return x;
    active_power_a:
      id: power2
      name: "Close power"
      filters:
        - multiply: -1
        - lambda: |-
            if (x <= 0.2) return 0;
            return x;
        - throttle: 1s
    update_interval: 0.4s
# Necessary for ADE7953s to come out of reset
# The reset pin is common to both ADE7953 chips
output:
  - platform: gpio
    id: ade7953_reset
    pin:
      number: GPIO2
      inverted: true
      ignore_strapping_warning: true
sn74hc595:
  - id: 'sn74hc595_hub'
    type: spi
    latch_pin: GPIO4
    sr_count: 1
switch:
  - platform: gpio
    id: relay1
    name: "Open relay"
    internal: true
    interlock: [relay2]
    interlock_wait_time: 200ms
    restore_mode: RESTORE_DEFAULT_OFF
    pin:
      sn74hc595: sn74hc595_hub
      number: 0
      inverted: false
  - platform: gpio
    id: relay2
    name: "Close relay"
    internal: true
    interlock: [relay1]
    interlock_wait_time: 200ms
    restore_mode: RESTORE_DEFAULT_OFF
    pin:
      sn74hc595: sn74hc595_hub
      number: 1
      inverted: false
  - platform: gpio
    id: wifi_led_blue
    pin:
      sn74hc595: sn74hc595_hub
      number: 2
      inverted: true
  - platform: gpio
    id: wifi_led_green
    pin:
      sn74hc595: sn74hc595_hub
      number: 3
      inverted: true
  - platform: gpio
    id: wifi_led_red
    pin:
      sn74hc595: sn74hc595_hub
      number: 4
      inverted: true
cover:
  - platform: current_based
    id: garage_door
    name: "Garage Door"
    open_sensor: current1
    open_moving_current_threshold: 0.1
    open_obstacle_current_threshold: 0.33
    open_duration: 20s
    open_action:
      - switch.turn_on: relay1
    close_sensor: current2
    close_moving_current_threshold: 0.1
    close_obstacle_current_threshold: 0.33
    close_duration: 19s
    close_action:
      - switch.turn_on: relay2
    stop_action:
      - switch.turn_off: relay1
      - switch.turn_off: relay2
    obstacle_rollback: 30%
    start_sensing_delay: 0.8s
    max_duration: 25s
    malfunction_detection: true
    malfunction_action:
      then:
        - logger.log: "Malfunction detected. Relay welded."
    state_topic: ${state_topic}
    command_topic: ${command_topic}
    position_state_topic: ${position_state_topic}
    position_command_topic: ${position_command_topic}
