Sonoff POWR2

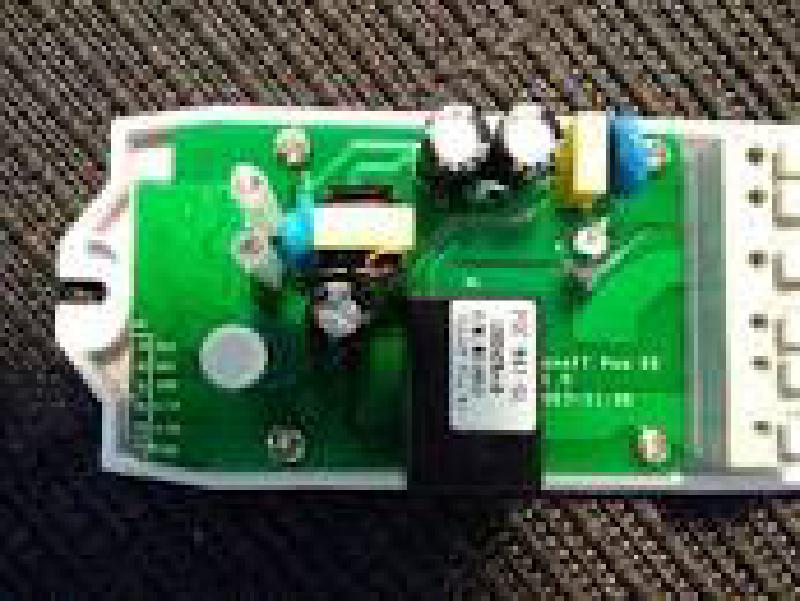

Product Images
GPIO Pinout
| Pin | Function |
|---|---|
| GPIO0 | Push Button (HIGH = off, LOW = on) |
| GPIO12 | Relay and its status LED |
| GPIO13 | Blue LED (HIGH = off, LOW = on) |
| GPIO1 | RX pin (for serial programming) |
| GPIO3 | TX pin (for serial programming) |
Basic Configuration
As the only controllable LED is the Blue LED, it is configured here to use the
status_led light component, which will take
over the LED in the event of a error/warning state, such as when WiFi is disrupted.
# Basic Config
substitutions:
update_interval: 60s
esphome:
name: "Sonoff POW R2"
project:
name: Sonoff.relay
version: 'POWR2'
esp8266:
board: esp01_1m
logger:
baud_rate: 0
# Enable Home Assistant API
api:
ota:
wifi:
networks:
- ssid: !secret wifi_ssid
password: !secret wifi_password
uart:
rx_pin: RX
baud_rate: 4800
binary_sensor:
- platform: gpio
pin:
number: GPIO0
mode: INPUT_PULLUP
inverted: True
name: Sonoff POW Button
on_press:
- switch.toggle: dummybutton
sensor:
- platform: cse7766
current:
name: "Sonoff Pow R2 Current"
filters:
- throttle_average: ${update_interval}
voltage:
name: "Sonoff Pow R2 Voltage"
filters:
- throttle_average: ${update_interval}
power:
name: "Sonoff Pow R2 Power"
filters:
- throttle_average: ${update_interval}
energy:
name: "Sonoff Pow R2 Energy"
filters:
- throttle: ${update_interval}
apparent_power:
name: "Sonoff Pow R2 Apparent Power"
filters:
- throttle_average: ${update_interval}
power_factor:
name: "Sonoff Pow R2 Power Factor"
filters:
- throttle_average: ${update_interval}
switch:
- platform: template
name: Sonoff POW Relay
optimistic: true
id: dummybutton
turn_on_action:
- switch.turn_on: relay
turn_off_action:
- switch.turn_off: relay
- platform: gpio
id: relay
pin: GPIO12
light:
- platform: status_led
name: Sonoff POW Blue LED
id: pow_blue_led
pin:
number: GPIO13
inverted: True
