Treatlife SL10 E27 9W 800L RGBCCT Bulb

bk72xx global Comes with ESPHome light

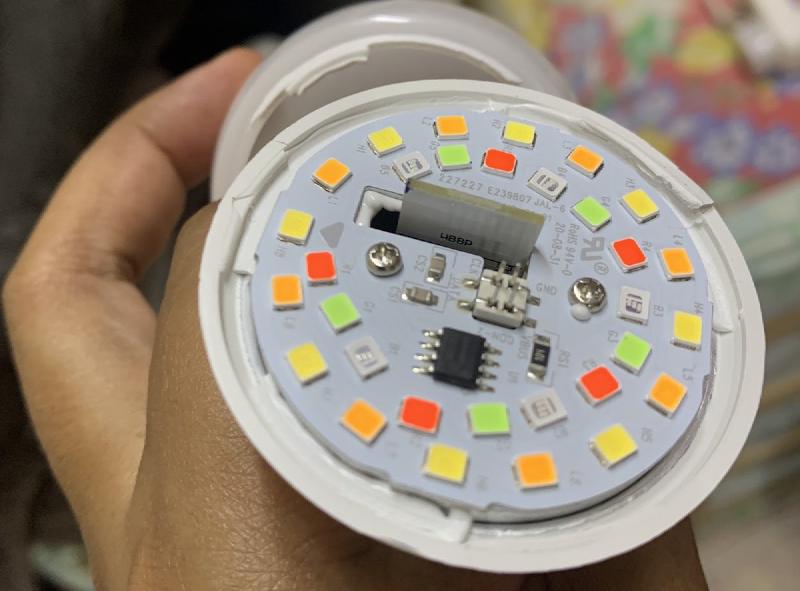

Treatlife SL10 E27 9W 800L RGBCCT Bulb - treatlife_sl10_led_driver.jpg

Overview

Treatlife SL10 PCB differs from the previous ESP based SL10 that now has BK7231T chip (W8P) and using sm2135 led driver.

GPIO Pinout

PinFunction
GPIO8SM2135 Data Pin
GPIO7SM2135 Clock Pin

Basic Configuration

substitutions:
  devicename: treatlife-sl10
esphome:
  name: $devicename
  friendly_name: treatlife-sl10
bk72xx:
  board: generic-bk7231t-qfn32-tuya
  framework:
    version: latest
# Enable logging
logger:
# Enable Home Assistant API
api:
ota:
wifi:
  networks:
  - ssid: !secret wifi_ssid
    password: !secret wifi_password
  # Enable fallback hotspot in case wifi connection fails
  ap:
    password: !secret ap_password
web_server:
  port: 80
captive_portal:
light:
  - platform: rgbww
    name: $devicename
    id: "light_treatlife_sl10"
    red: output_red
    green: output_green
    blue: output_blue
    warm_white: output_warmwhite
    cold_white: output_coldwhite
    color_interlock: true
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
    restore_mode: RESTORE_DEFAULT_ON
sm2135:
  data_pin: GPIO8
  clock_pin: GPIO7
  rgb_current: 25mA
  cw_current: 40mA
output:
  - platform: sm2135
    id: output_red
    channel: 2
  - platform: sm2135
    id: output_green
    channel: 0
  - platform: sm2135
    id: output_blue
    channel: 1
  - platform: sm2135
    id: output_warmwhite
    channel: 4
  - platform: sm2135
    id: output_coldwhite
    channel: 3
