Tuya Generic WiFI IR Remote Control

bk72xx global Comes with ESPHome misc

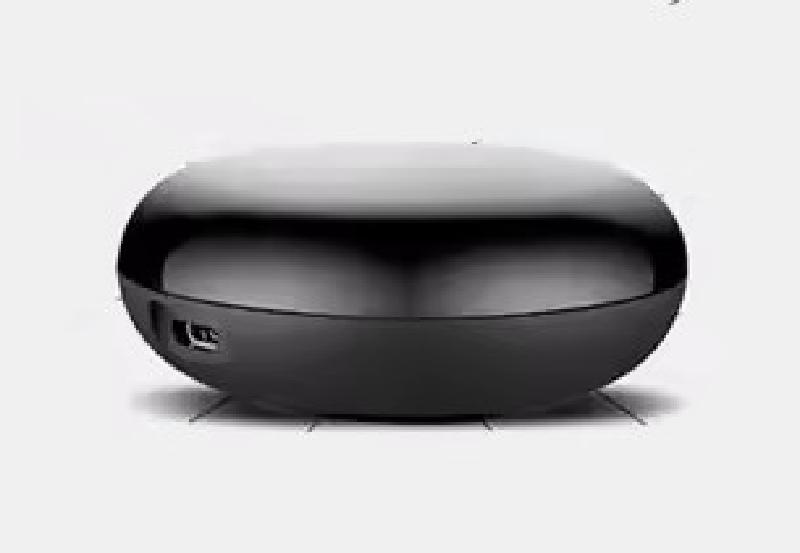

Tuya Generic WiFI IR Remote Control - tuya-generic-wifi-ir-remote-control.jpg

General Notes

This devices has a CB3S board. It can be bought at AliExpres, e.g. here (February 2025).

GPIO Pinout

PinFunction
P6Button
P7IR Receiver
P8LED
P26IR Transmitter

Flashing

This device can be flashed using Tuya Cloudcutter using device profile tuya-generic-universal-ir-remote-control-cb3s-v2.0.0.

Configuration

bk72xx:
  board: cb3s
remote_receiver:
  pin:
    number: P7
    inverted: true
    mode: INPUT_PULLUP
remote_transmitter:
  pin: P26
  carrier_duty_percent: 50%
light:
  - platform: status_led
    pin: P8
binary_sensor:
  - platform: gpio
    pin:
      number: P6
      inverted: true
      mode:
        input: true
        pullup: true
