Tuya USB Relay HC-S050-WIFI

bk72xx global Comes with ESPHome relay
Tuya USB Relay HC-S050-WIFI - tuya-hc-s050-wifi-pcb-flashing.jpg
Tuya USB Relay HC-S050-WIFI - tuya-hc-s050-wifi.jpg

General Notes

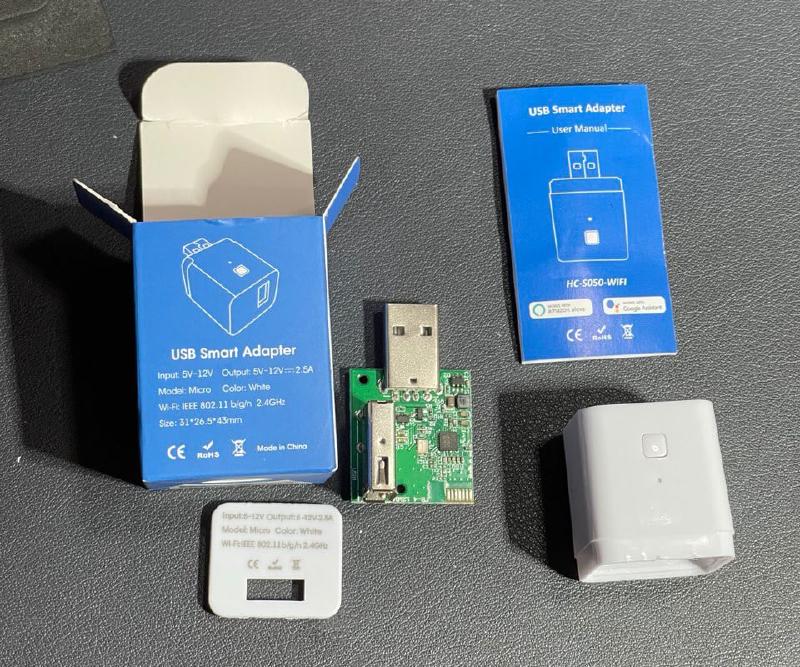

The Tuya HC-S050-WIFI is cheap USB “relay” that can hold up to 12v (by specs).

GPIO Pinout

PinFunction
P6LED
P7Relay
P8Button

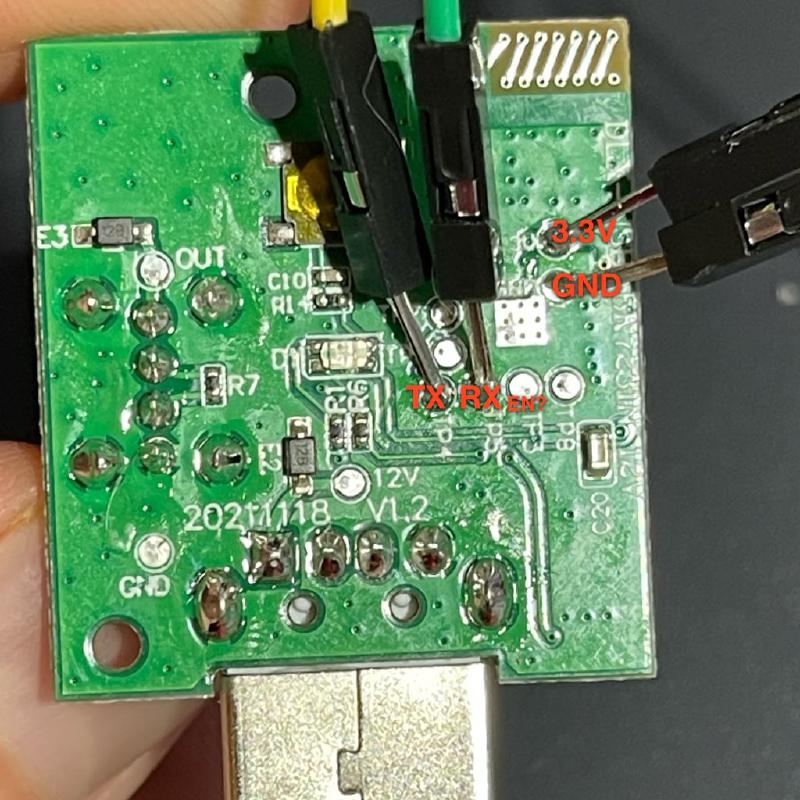

Flashing

Flash using ESP Web install and select any option. Lately we replace it with bk controller:

PinFunction
GND- 3.3V
3.3V+ 3.3V
TP4TX
TP5RX
TP3possible EN

Configuration for ESP-IDF

substitutions:
  manufacturer: Tuya
  model: HC-S050-WIFI
esphome:
  name: usb-relay-adapter
  friendly_name: USB Adapter
  area: Entrance
  comment: bk72xx, usb, HC-S050-WIFI
bk72xx:
  board: generic-bk7231n-qfn32-tuya
logger:
  baud_rate: 0
  level: INFO
# << -- don't forget to put here API, OTA, WIFI sections -- >>
switch:
  - platform: gpio
    id: relay
    name: "Relay"
    pin: P7
    restore_mode: RESTORE_DEFAULT_OFF
light:
  - platform: status_led
    name: "Status LED"
    disabled_by_default: true
    entity_category: diagnostic
    pin:
      number: P6
      inverted: true
binary_sensor:
  - platform: gpio
    id: btn
    pin:
      number: P8
      inverted: true
      mode:
        input: true
        pullup: true
    name: Side button
    on_release:
      then:
        - switch.toggle: relay
