VirageBridge VB-001

ESP8266 global Comes with ESPHome misc

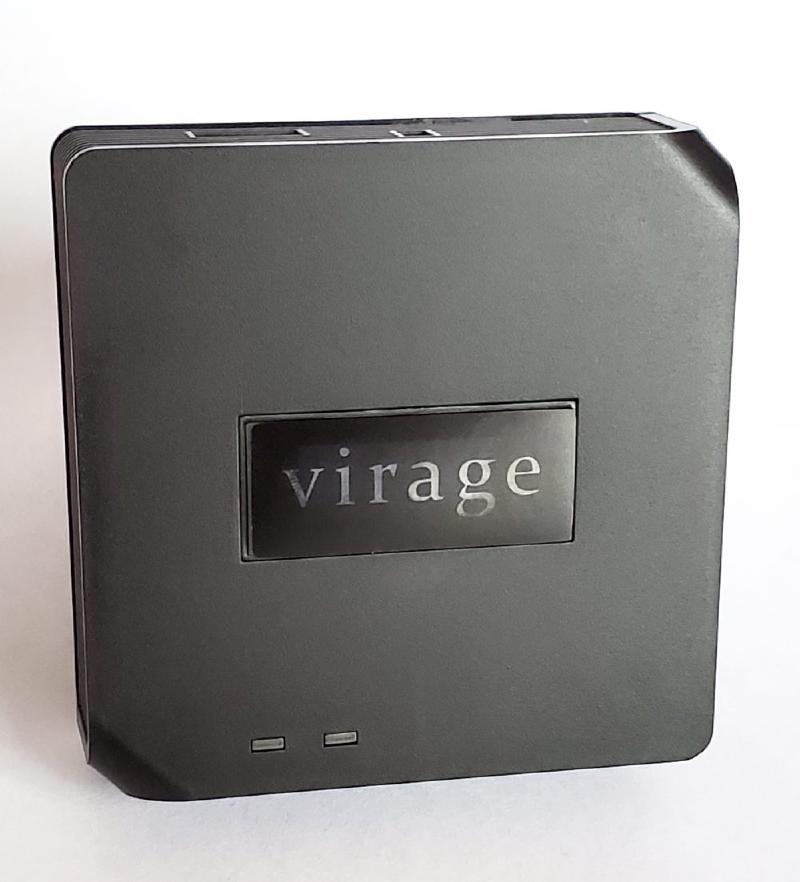

VirageBridge VB-001 - virage_labs_VB-001.jpg

Overview

Virage Laboratories VB-001 433 MHz to WiFi Bridge

General Notes

The VirageBridge 433 MHz to WiFi Bridge (based on a Sonoff RF Bridge) runs a customized version of Tasmota optimized for receiving signals from sensors such as door contacts and motion sensors. It ships with a USB power supply and cord, and is optimized for Home Assistant, Domoticz and OpenHab. You can easily upload an ESPHome binary using the Firmware Upgrade function in the built-in web interface.

GPIO Pinout (Per top to bottom when installed)

PinFunction
GPIO0Button 1
GPIO1Serial Tx
GPIO3Serial Rx
GPIO13LED 1
