ViragePlug KS-604S

ESP8266 us Comes with ESPHome plug

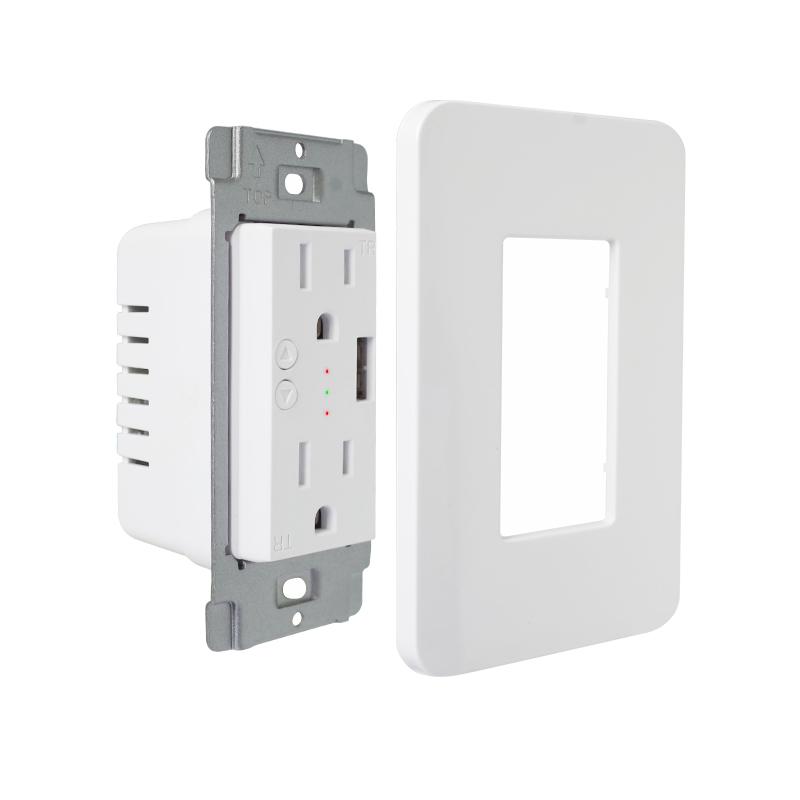

ViragePlug KS-604S - virage_labs_KS-604S.jpg

Overview

Virage Laboratories KS-604S Outlet

General Notes

This 120V wall outlet comes with a customized Tasmota pre-installed, and has two independently switchable 120V outlets and a switchable USB outlet. It is optimized for Home Assistant, Domoticz and OpenHab but you can easily flash an ESPHome binary using the Firmware Upgrade function in the built-in web interface.

GPIO Pinout (Per top to bottom when installed)

PinFunction
GPIO0LEDLink
GPIO3Button 1
GPIO4LED 1 (inverted)
GPIO5Button 2
GPIO12Relay 2
GPIO13Relay 1
GPIO14LED 2 (inverted)
GPIO15Relay 3
